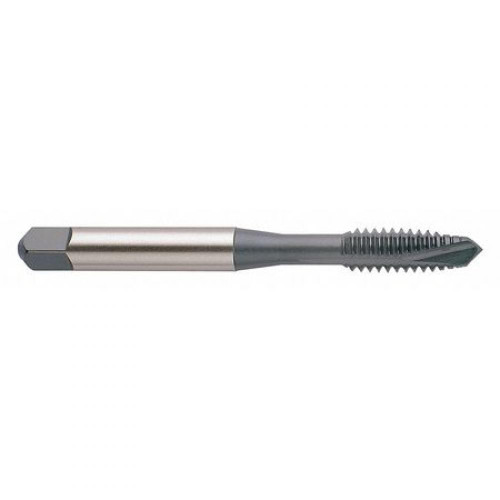

3FL SP PT PLUG TAP FOR SS 35Rc HARDSLICK

YG-1

No reviews yet Write a Review
SKU:
YG1-IC506
$47.53

Specifications

Unit of Measure
Imperial
Diameter
0.48 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
3.38 Inch
Cutting Direction
Right
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.37
Shank Diameter (Metric)
9.30
Overall Length (Metric)
85.90
Neck Diameter (Decimal)
0.40
Neck Diameter (Metric)
9
Workpiece Material
Steel
Diameter (Metric)
12
Thread Standard
M
Thread Size
M12
Depth Of Cut
3 x D
Thread Limit
D6
Chamfer
Plug
Thread Pitch
1.75
Blank Standard
302A
Chamfer Length
4P-5P
Connection (Decimal)
0.37 x 0.28
Connection (Metric)
9.32 x 6.99
Drill Size (Decimal)
0.41
Drill Size (Metric)
10.41
Square Length (Decimal)
0.44
Square Length (Metric)
11.20
Square Size (Decimal)
0.28
Square Size 2 (Decimal)
0.44
Square Size (Metric)
9.30
Square Size 2 (Metric)
9.30
Thread Length (Decimal)
0.99
Thread Length (Metric)
25
Useable Length (Decimal)
1.66
Useable Length (Metric)
42.09
3FL SP PT PLUG TAP FOR SS 35Rc HARDSLICK
$47.53
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
