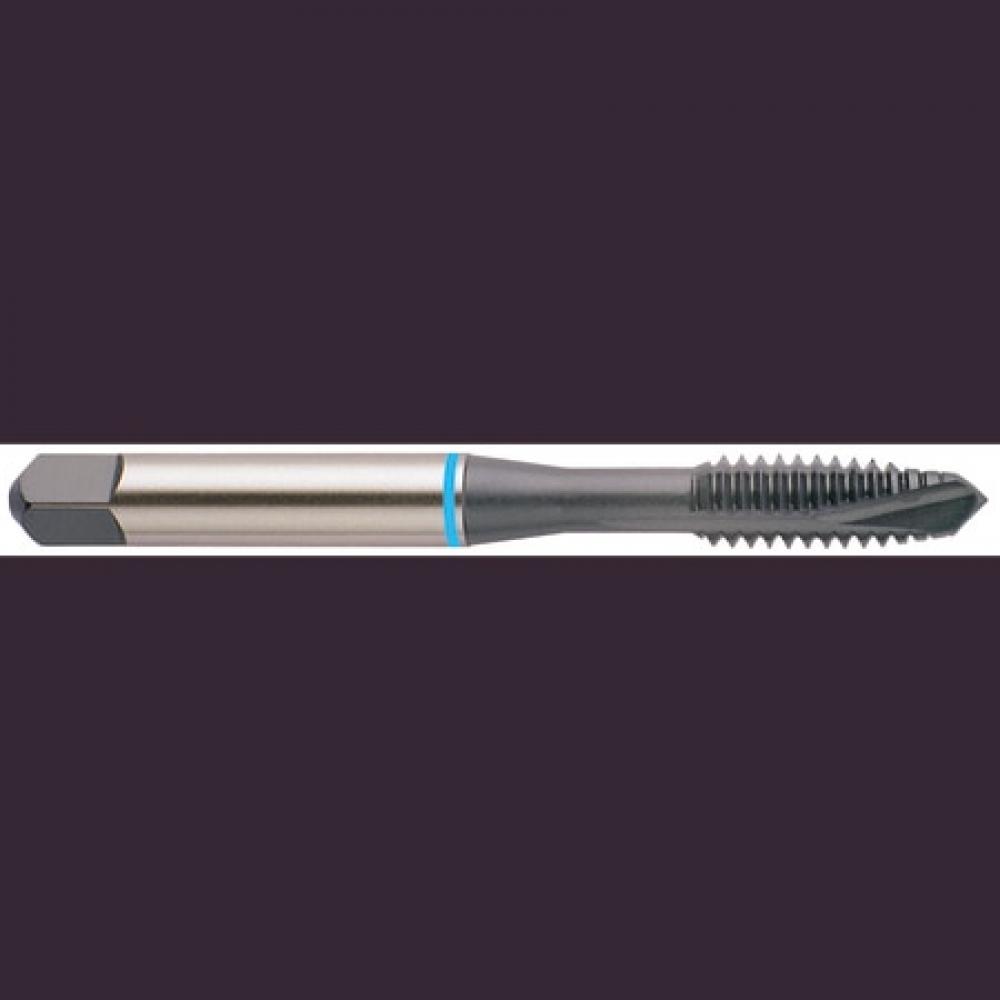

YG-1 Spiral Point Tap: M7 x 1, D5, Plug, 3 Flute, Steam Oxide, IB345

YG-1

No reviews yet Write a Review
SKU:
YG1-IB345
$20.54

YG-1 spiral point tap for steel, 3 flutes, plug chamfer, square shank. Steam oxide finish. Manufacturer part number IB345.

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.7200
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.3180
Shank Diameter (Metric)
8.08
Overall Length (Metric)
69.09
Workpiece Material
Steel
Thread Standard
M
Thread Size
M7 x 1
LxD Ratio
3xD
Thread Limit
D5
Chamfer
Plug
Thread Pitch (mm)
1
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Stainless Steel, High-Temp Alloy
Drill Size (Decimal)
0.2398
Drill Size (Metric)
6.09
Square Length (Decimal)
0.3800
Square Length (Metric)
9.65
Square Size (Decimal)
0.2380
Square Size (Metric)
6.05
Thread Length (Decimal)
0.6690
Thread Length (Metric)
16.99
Usable Length (Decimal)
1.1260
Usable Length (Metric)
28.60
