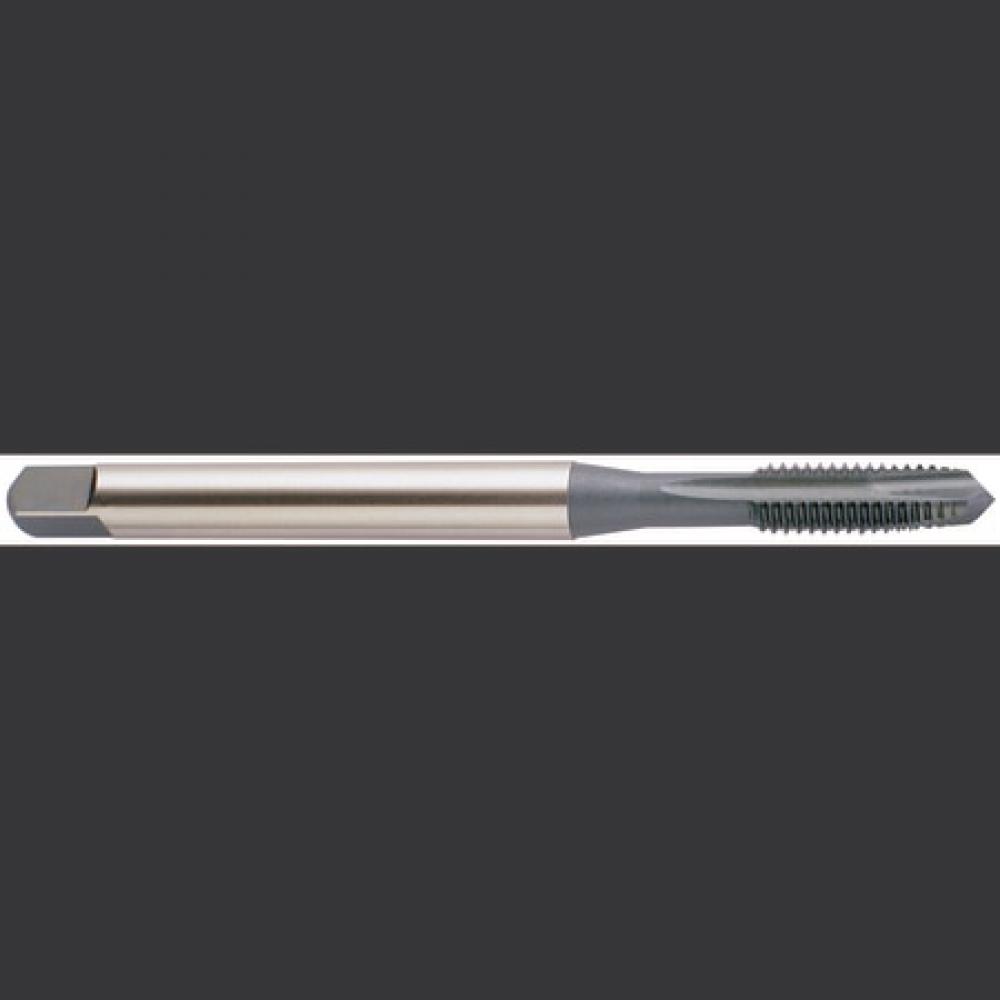

YG-1 Spiral Point Tap: #5-40, H2, Plug, 3 Flute, Hardslick, M7202

YG-1

No reviews yet Write a Review
SKU:
YG1-M7202
$47.09

YG-1 spiral point tap for steel, 3 flutes, plug chamfer, square shank. Hardslick coating. Manufacturer part number M7202.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
1.9370
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.1410
Shank Diameter (Metric)
3.58
Overall Length (Metric)
49.20
Workpiece Material
Steel
Thread Standard
UNC
Thread Size
#5-40
LxD Ratio
3xD
Thread Limit
H2
Chamfer
Plug
Thread Pitch (TPI)
40
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Hardened Steel
Drill Size (Metric)
2.60
Square Length (Decimal)
0.1900
Square Length (Metric)
4.83
Square Size (Decimal)
0.1100
Square Size (Metric)
2.79
Thread Length (Decimal)
0.3740
Thread Length (Metric)
9.50
Usable Length (Decimal)
0.6260
Usable Length (Metric)
15.90
