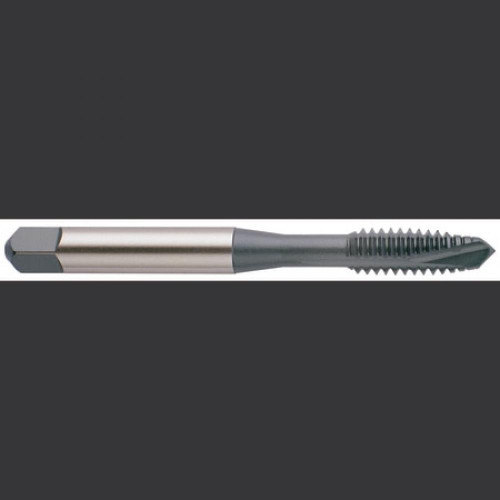

YG-1 Spiral Point Tap: #2-56, H2, Plug, 2 Flute, Hardslick, M7082

YG-1

No reviews yet Write a Review
SKU:
YG1-M7082
$84.67

YG-1 spiral point tap for steel, 2 flutes, plug chamfer, square shank. Hardslick coating. Manufacturer part number M7082.

Specifications

Unit of Measure
Inch
Number of Flutes
2
Shank Type
Square
Overall Length (Decimal)
1.7520
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.1410
Shank Diameter (Metric)
3.58
Overall Length (Metric)
44.50
Workpiece Material
Steel
Thread Standard
UNC
Thread Size
#2-56
LxD Ratio
3xD
Thread Limit
H2
Chamfer
Plug
Thread Pitch (TPI)
56
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Hardened Steel
Drill Size (Decimal)
0.0698
Drill Size (Metric)
1.77
Square Length (Decimal)
0.1900
Square Length (Metric)
4.83
Square Size (Decimal)
0.1100
Square Size (Metric)
2.79
Thread Length (Decimal)
0.2560
Thread Length (Metric)
6.50
Usable Length (Decimal)
0.4330
Usable Length (Metric)
11.00
YG-1 Spiral Point Tap: #2-56, H2, Plug, 2 Flute, Hardslick, M7082
$84.67
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
