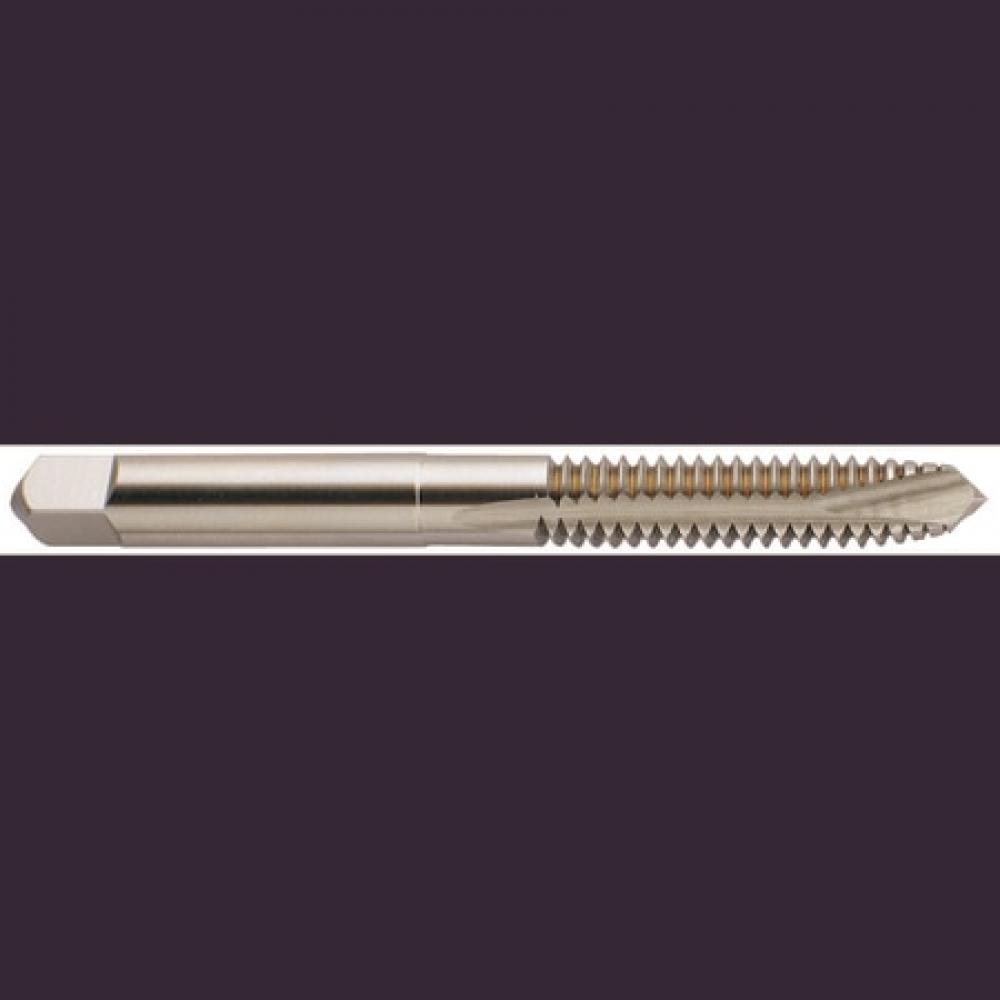

YG-1 Spiral Point Tap: 7/16-20, H5, Plug, 3 Flute, Steam Oxide, M4545

YG-1

No reviews yet Write a Review
SKU:
YG1-M4545
$63.84

YG-1 spiral point tap for steel, 3 flutes, plug chamfer, square shank. Steam oxide finish. Manufacturer part number M4545.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.1570
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.3230
Shank Diameter (Metric)
8.20
Overall Length (Metric)
80.19
Workpiece Material
Steel
Thread Standard
UNF
Thread Size
7/16-20
LxD Ratio
3xD
Thread Limit
H5
Chamfer
Plug
Thread Pitch (TPI)
20
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Hardened Steel
Drill Size (Metric)
9.96
Square Length (Decimal)
0.4100
Square Length (Metric)
10.41
Square Size (Decimal)
0.2420
Square Size (Metric)
6.15
Thread Length (Decimal)
0.8660
Thread Length (Metric)
22.00
Usable Length (Decimal)
1.4370
Usable Length (Metric)
36.50
