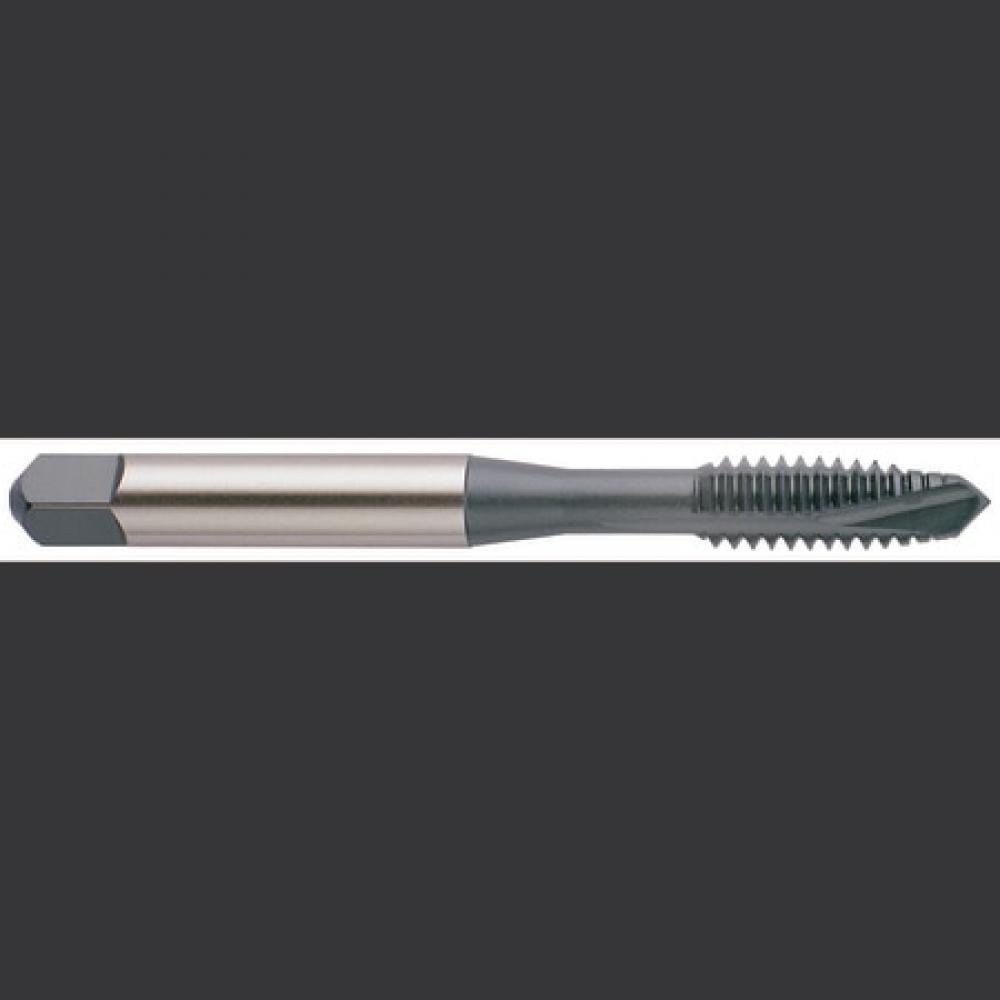

YG-1 Spiral Point Tap: 1/4-28, H4, Plug, 3 Flute, TiCN, M6424

YG-1

No reviews yet Write a Review
SKU:
YG1-M6424
$43.59

YG-1 spiral point tap for steel, 3 flutes, plug chamfer, square shank. TiCN coating. Manufacturer part number M6424.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.5000
Coating/Finish
TiCN
Shank Diameter (Decimal)
0.2550
Shank Diameter (Metric)
6.48
Overall Length (Metric)
63.50
Workpiece Material
Steel
Thread Standard
UNF
Thread Size
1/4-28
LxD Ratio
3xD
Thread Limit
H4
Chamfer
Plug
Thread Pitch (TPI)
28
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Hardened Steel
Drill Size (Decimal)
0.2175
Square Length (Decimal)
0.3100
Square Length (Metric)
7.87
Square Size (Decimal)
0.1910
Square Size (Metric)
4.85
Thread Length (Decimal)
0.5910
Thread Length (Metric)
15.01
Usable Length (Decimal)
1.0000
Usable Length (Metric)
25.40
$43.59
