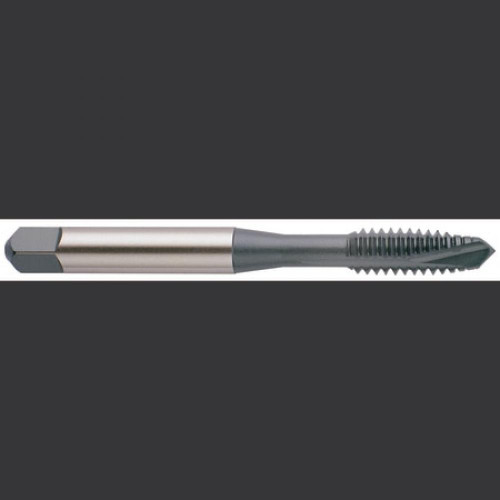

YG-1 Spiral Point Tap: #6-32, H7, Plug, 3 Flute, Steam Oxide, I0247

YG-1

No reviews yet Write a Review
SKU:
YG1-I0247
$18.01

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. Steam oxide finish. Manufacturer part number I0247.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.0000
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.1410
Shank Diameter (Metric)
3.58
Overall Length (Metric)
50.80
Workpiece Material
Steel, Stainless Steel
Thread Standard
UNC
Thread Size
#6-32
LxD Ratio
3xD
Thread Limit
H7
Chamfer
Plug
Thread Pitch (TPI)
32
Blank Standard
302A
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.1096
Drill Size (Metric)
2.78
Square Length (Decimal)
0.1900
Square Length (Metric)
4.83
Square Size (Decimal)
0.1100
Square Size (Metric)
2.79
Thread Length (Decimal)
0.4130
Thread Length (Metric)
10.49
Usable Length (Decimal)
0.6890
Usable Length (Metric)
17.50
