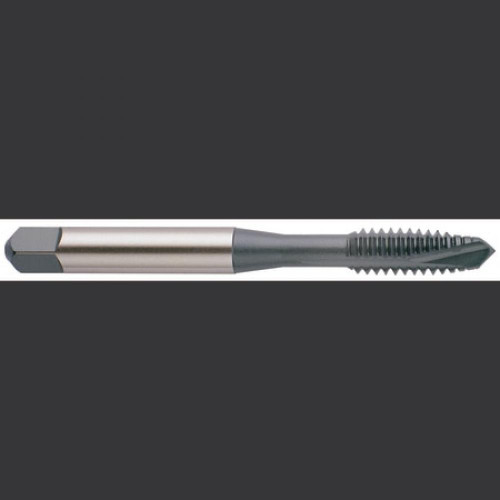

YG-1 Spiral Point Tap: 5/8-18 UNF, H7, Plug, 3 Flute, Steam Oxide, I0667

YG-1

No reviews yet Write a Review
SKU:
YG1-I0667
$68.65

Tap threads in through holes and push the chips ahead with this 5/8-18 spiral point tap.

  • Thread standard: UNF
  • Thread size: 5/8-18
  • Thread limit: H7
  • Chamfer: Plug
  • Thread length: 1.083"
  • Number of flutes: 3
  • Coating/finish: Steam Oxide
  • Workpiece material: Steel, Stainless Steel
  • Thread pitch (TPI): 18
  • Overall length: 3.811"

YG-1 part number I0667.

Specifications

Unit of Measure
Inch
Secondary Workpiece Material
Non-Ferrous
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.8110
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.4800
Shank Diameter (Metric)
12.19
Overall Length (Metric)
96.80
Workpiece Material
Steel, Stainless Steel
Thread Standard
UNF
Thread Size
5/8-18
LxD Ratio
3xD
Thread Limit
H7
Chamfer
Plug
Thread Pitch (TPI)
18
Blank Standard
302A
Chamfer Length
4P-5P
Drill Size (Metric)
14.59
Square Length (Decimal)
0.5600
Square Length (Metric)
14.22
Square Size (Decimal)
0.3600
Square Size (Metric)
9.14
Thread Length (Decimal)
1.0830
Thread Length (Metric)
27.51
Usable Length (Decimal)
1.8110
Usable Length (Metric)
46.00
