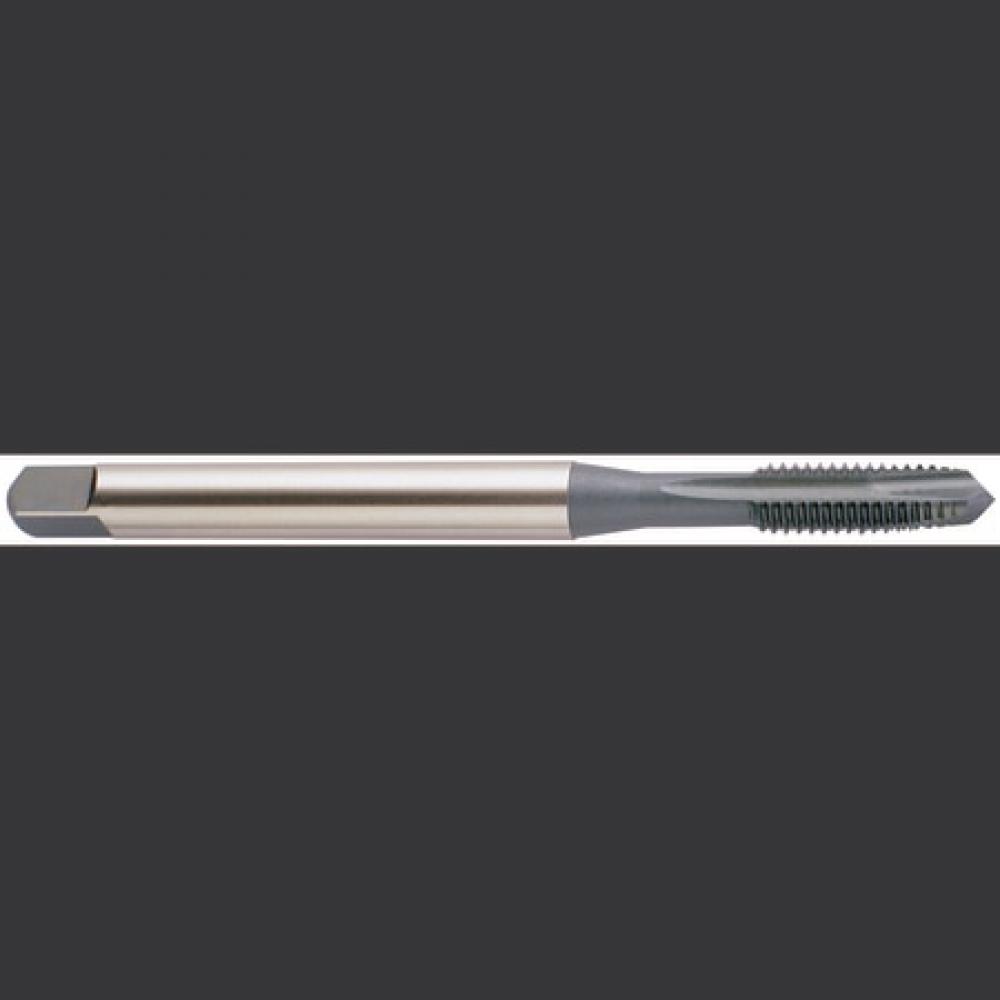

YG-1 Spiral Point Tap: 7/8-14, H6, Plug, 3 Flute, TiN, I2766

YG-1

No reviews yet Write a Review
SKU:
YG1-I2766
$168.16

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. TiN coating. Manufacturer part number I2766.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
4.6890
Coating/Finish
TiN
Shank Diameter (Decimal)
0.6970
Shank Diameter (Metric)
17.70
Overall Length (Metric)
119.10
Workpiece Material
Steel, Stainless Steel
Thread Standard
UNF
Thread Size
7/8-14
LxD Ratio
3xD
Thread Limit
H6
Chamfer
Plug
Thread Pitch (TPI)
14
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Metric)
20.58
Square Length (Decimal)
0.7500
Square Length (Metric)
19.05
Square Size (Decimal)
0.5230
Square Size (Metric)
13.28
Thread Length (Decimal)
1.3390
Thread Length (Metric)
34.01
Usable Length (Decimal)
2.2200
Usable Length (Metric)
56.39
YG-1 Spiral Point Tap: 7/8-14, H6, Plug, 3 Flute, TiN, I2766
$168.16
