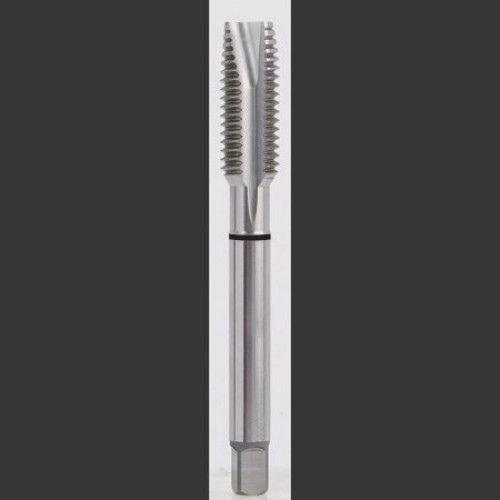

YG-1 Spiral Point Tap: 1/4-20, H5, 3 Flute, Bright/Uncoated, T4405

YG-1

No reviews yet Write a Review
SKU:
YG1-T4405
$18.15

YG-1 spiral point tap for steel, stainless steel, cast iron and non-ferrous metals, 3 flutes, square shank. Bright/uncoated. Manufacturer part number T4405.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.5000
Coating/Finish
Bright/Uncoated
Shank Diameter (Decimal)
0.2550
Shank Diameter (Metric)
6.48
Overall Length (Metric)
63.50
Thread Standard
UNC
Thread Size
1/4-20
LxD Ratio
3xD
Thread Limit
H5
Thread Pitch (TPI)
20
Blank Standard
302A
Chamfer Length
4P-5P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Square Length (Decimal)
0.3100
Square Length (Metric)
7.87
Square Size (Decimal)
0.1910
Square Size (Metric)
4.85
Thread Length (Decimal)
0.5910
Thread Length (Metric)
15.01
Usable Length (Decimal)
1.0000
Usable Length (Metric)
25.40
YG-1 Spiral Point Tap: 1/4-20, H5, 3 Flute, Bright/Uncoated, T4405
$18.15
