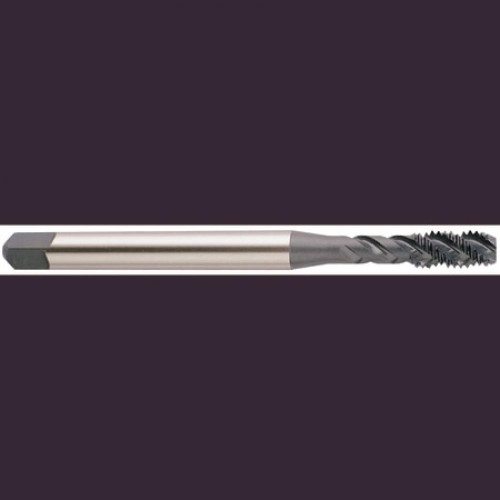

#4-40 3FL SP FL BOTTOM G/T LONG SHANK TIN COATED TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-G7162
$58.33

Specifications

Unit of Measure
Imperial
Diameter
0.12 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
4 Inch
Cutting Direction
Right
Coating/Finish
TiN
Shank Diameter (Decimal)
0.15
Shank Diameter (Metric)
3.58
Overall Length (Metric)
101.60
Neck Diameter (Decimal)
0.08
Neck Diameter (Metric)
1.96
Diameter (Metric)
2.84
Thread Standard
UNC
Thread Size
#4
Depth Of Cut
2.50 x D
Thread Limit
H2
Chamfer
Modified Bottoming
Thread Pitch
40
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.15 x 0.11
Connection (Metric)
3.58 x 2.79
Drill Size (Decimal)
0.09
Drill Size (Metric)
2.27
Square Length (Decimal)
0.19
Square Length (Metric)
4.83
Square Size (Decimal)
0.11
Square Size 2 (Decimal)
0.19
Square Size (Metric)
2.79
Square Size 2 (Metric)
4.83
Thread Length (Decimal)
0.24
Thread Length (Metric)
5.99
Useable Length (Decimal)
0.57
Useable Length (Metric)
14.30
#4-40 3FL SP FL BOTTOM G/T LONG SHANK TIN COATED TAP
$58.33
