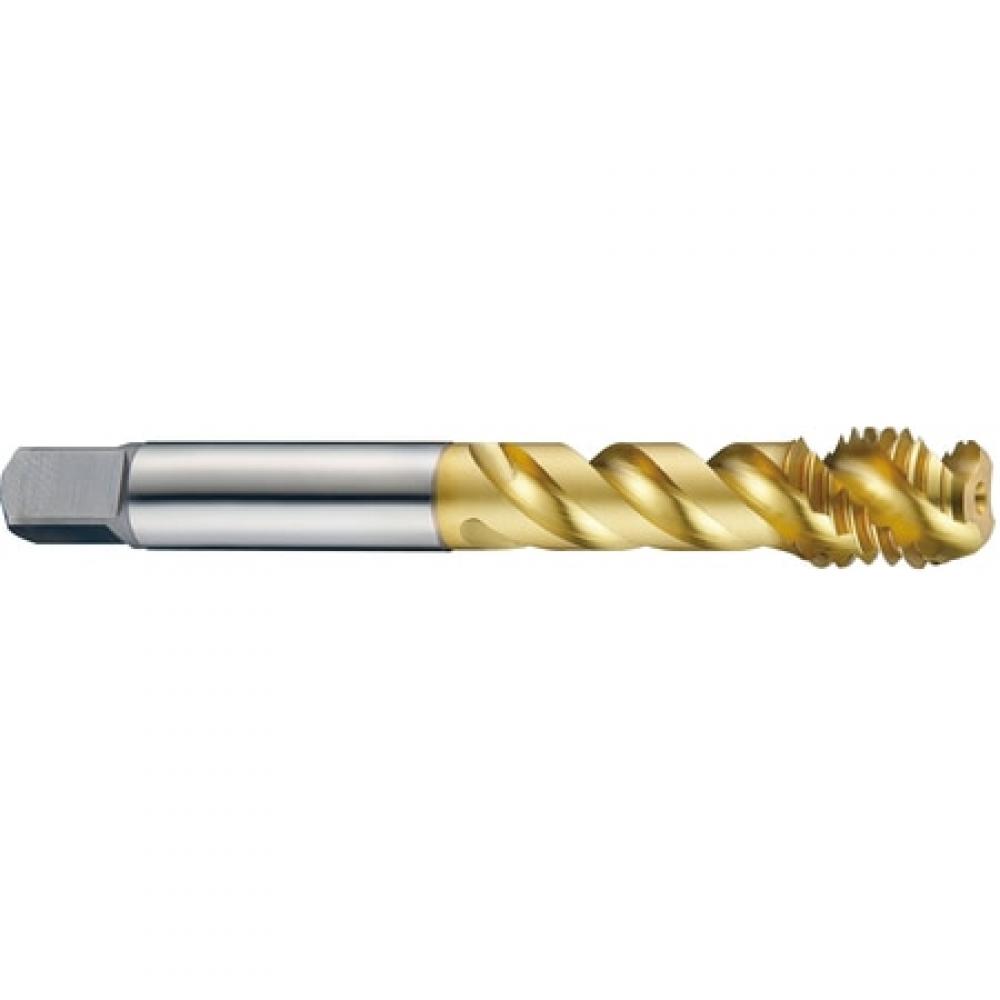

#4-48UNF H1 47.6L Spiral flute for high speed tapping

YG-1

No reviews yet Write a Review
SKU:
YG1-TTS65181
$39.73

Specifications

Unit of Measure
Imperial
Diameter
0.12 Inch
Shank Type
Square
Overall Length
1.88 Inch
Cutting Direction
Right
Coating/Finish
TiN
Shank Diameter (Decimal)
0.15
Shank Diameter (Metric)
3.58
Overall Length (Decimal)
47.75
Overall Length (Metric)
0.21
Overall Length (Fractional)
47.75
Helix Angle
45 degrees
Neck Diameter (Decimal)
0.08
Neck Diameter (Metric)
1.96
Through Coolant
No
Neck Length (Decimal)
0.57
Neck Length (Metric)
14.30
Diameter (Metric)
2.84
Thread Standard
UNF
Thread Size
#4
Depth Of Cut
2.50 x D
Thread Limit
H1
Chamfer
Modified Bottoming
Thread Pitch
48
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.15 x 0.11
Connection (Metric)
3.58 x 2.79
Drill Size (Decimal)
0.10
Drill Size (Metric)
2.36
Square Length (Decimal)
0.19
Square Length (Metric)
4.83
Square Size (Decimal)
0.11
Square Size 2 (Decimal)
0.19
Square Size (Metric)
2.79
Square Size 2 (Metric)
4.83
Thread Length (Metric)
5.31
Useable Length (Decimal)
0.57
Useable Length (Metric)
14.30
#4-48UNF H1 47.6L Spiral flute for high speed tapping
$39.73
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
