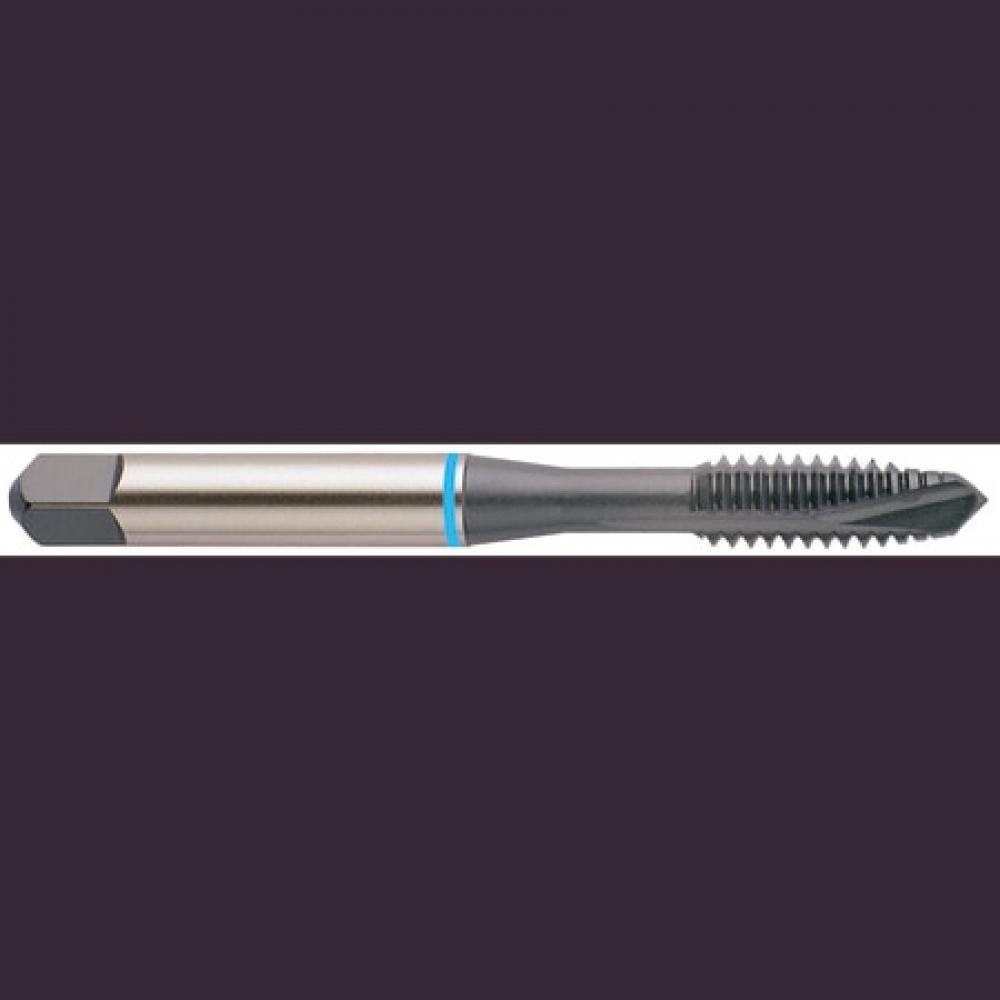

YG-1 Spiral Point Tap: M18 x 1.5, D6, Plug, 3 Flute, Steam Oxide, K3676

YG-1

No reviews yet Write a Review
SKU:
YG1-K3676
$97.66

YG-1 spiral point tap for steel and stainless steel, 3 flutes, plug chamfer, square shank. Steam oxide finish. Manufacturer part number K3676.

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
4.3310
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.5420
Shank Diameter (Metric)
13.77
Overall Length (Metric)
110.01
Workpiece Material
Steel, Stainless Steel
Thread Standard
MF
Thread Size
M18 x 1.5
LxD Ratio
3xD
Thread Limit
D6
Chamfer
Plug
Thread Pitch (mm)
1.50
Blank Standard
DIN/ANSI
Chamfer Length
4P-5P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.6550
Drill Size (Metric)
16.64
Square Length (Decimal)
0.6300
Square Length (Metric)
16.00
Square Size (Decimal)
0.4060
Square Size (Metric)
10.31
Thread Length (Decimal)
1.0830
Thread Length (Metric)
27.51
Usable Length (Decimal)
1.8110
Usable Length (Metric)
46.00
