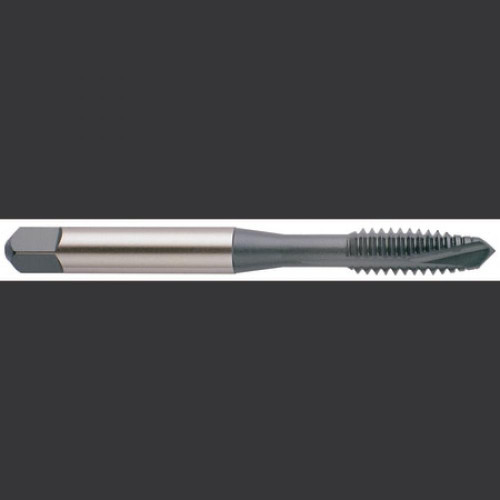

YG-1 Spiral Point Tap: 1-8, H4, Plug, 3 Flute, Steam Oxide, J3784

YG-1

No reviews yet Write a Review
SKU:
YG1-J3784
$163.26

YG-1 spiral point tap for steel, 3 flutes, plug chamfer, square shank. Steam oxide finish. Manufacturer part number J3784.

Specifications

Unit of Measure
Inch
Secondary Workpiece Material
Stainless Steel, High-Temp Alloy
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
5.1260
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.8000
Shank Diameter (Metric)
20.32
Overall Length (Metric)
130.20
Workpiece Material
Steel
Thread Standard
UNC
Thread Size
1-8
LxD Ratio
3xD
Thread Limit
H4
Chamfer
Plug
Thread Pitch (TPI)
8
Blank Standard
302A
Chamfer Length
4P-5P
Drill Size (Decimal)
0.8863
Drill Size (Metric)
22.51
Square Length (Decimal)
0.8100
Square Length (Metric)
20.57
Square Size (Decimal)
0.6000
Square Size (Metric)
15.24
Thread Length (Decimal)
1.4960
Thread Length (Metric)
38.00
Usable Length (Decimal)
2.5000
Usable Length (Metric)
63.50
YG-1 Spiral Point Tap: 1-8, H4, Plug, 3 Flute, Steam Oxide, J3784
$163.26
