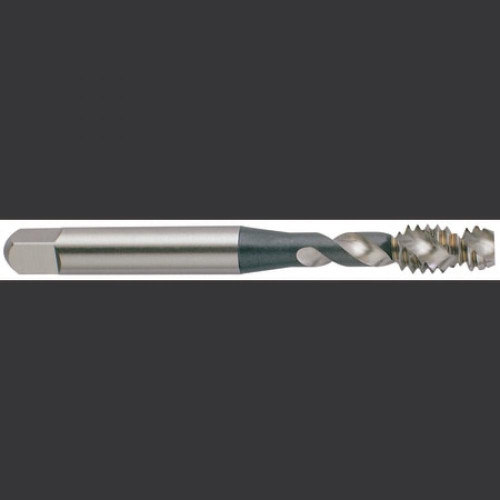

5/16-18 2FL SP FL TAP HP ALUM ALLOY HARDSLICK COATED

YG-1

No reviews yet Write a Review
SKU:
YG1-D8443
$53.54

Specifications

Unit of Measure
Imperial
Diameter
0.32 Inch
Number Of Flutes
2
Shank Type
Square
Overall Length
2.72 Inch
Cutting Direction
Right
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.32
Shank Diameter (Metric)
8.08
Overall Length (Metric)
69.09
Helix Angle
50 degrees
Neck Diameter (Decimal)
0.24
Through Coolant
No
Workpiece Material
Aluminum
Diameter (Metric)
7.94
Thread Standard
UNC
Thread Size
5/16
Depth Of Cut
2.50 x D
Thread Limit
H3
Chamfer
Modified Bottoming
Thread Pitch
18
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.32 x 0.24
Connection (Metric)
8.08 x 6.05
Drill Size (Decimal)
0.27
Drill Size (Metric)
6.65
Square Length (Decimal)
0.38
Square Length (Metric)
9.65
Square Size (Decimal)
0.24
Square Size 2 (Decimal)
0.38
Square Size (Metric)
6.05
Square Size 2 (Metric)
9.65
Thread Length (Decimal)
0.48
Thread Length (Metric)
11.99
Useable Length (Decimal)
1.13
Useable Length (Metric)
28.60
5/16-18 2FL SP FL TAP HP ALUM ALLOY HARDSLICK COATED
$53.54
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
