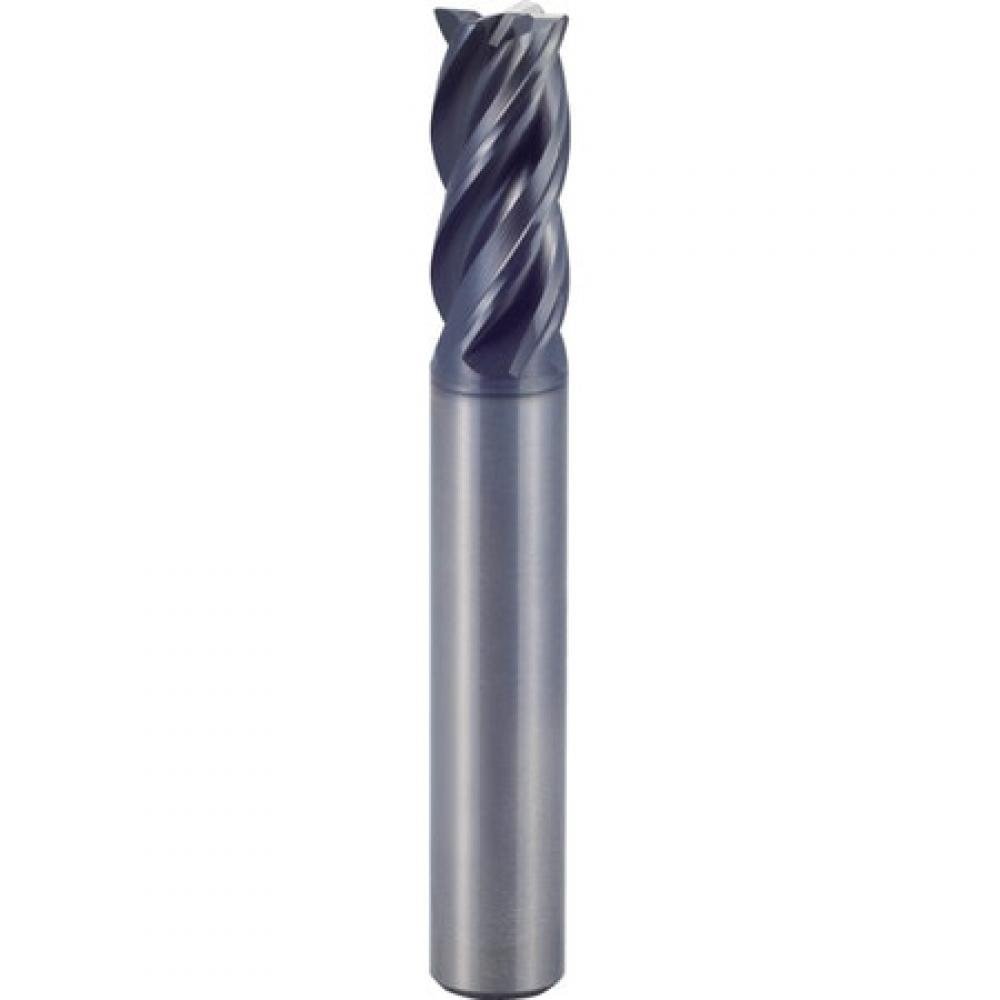

5/16 x 5/16 x 1-1/4 x 3 V7 PLUS A 4FL MULTI HELIX BALL NOSE PLAIN SHANK END MILL

YG-1

No reviews yet Write a Review
SKU:
YG1-UGMG53S913
$91.58

Specifications

Series
UGMG53
Unit of Measure
Fractional
Diameter
5/16 Inch
Length of Cut
1-1/4 Inch
Shank Size
5/16 Inch
Shank Type
Plain
Overall Length
3 Inch
Cutting Direction
Right
Material
Carbide
Coating/Finish
Y-Coating
Length of Cut (Decimal)
1.25
Length of Cut (Metric)
31.80
Shank Diameter (Decimal)
0.31
Shank Diameter (Metric)
7.90
Overall Length (Decimal)
3
Overall Length (Metric)
76.20
Helix Angle
36 degrees
Number of Flutes
4
Diameter (Decimal)
0.31
Workpiece Material
"High-Temp Alloy, Stainless Steel, Cast Iron, Steel"
Diameter (Metric)
7.90
Ball Nose Radius (Decimal)
0.16
Ball Nose Radius (Metric)
4
Ball Nose Radius (Fractional)
5/32
Cut Type
Center Cut
$91.58
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
