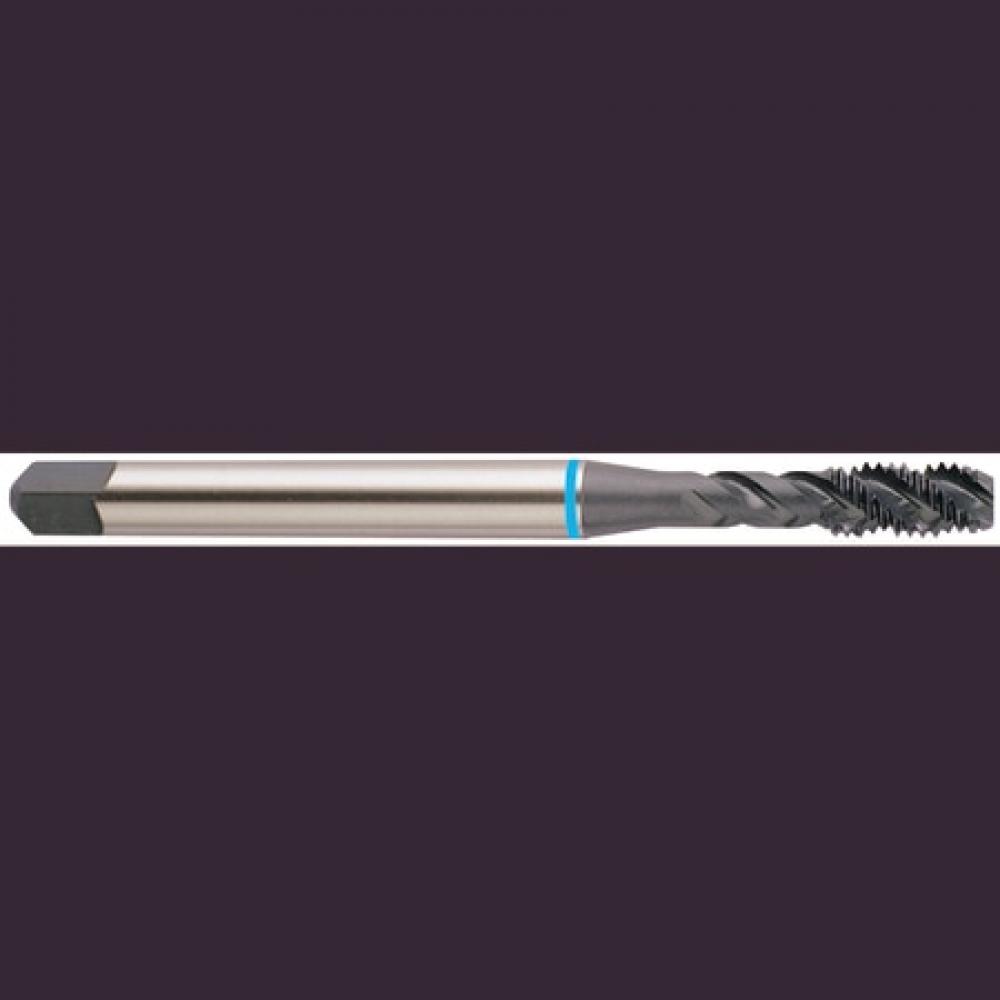

YG-1 Spiral Flute Tap: 5/8-18, H5, Modified Bottoming, 4 Flute, Hardslick, HSS, BI665

YG-1

No reviews yet Write a Review
SKU:
YG1-BI665
$179.34

YG-1 spiral flute tap for steel and stainless steel, 40 degree helix, modified bottoming chamfer, square shank. HSS, Hardslick coating. Manufacturer part number BI665.

Specifications

Unit of Measure
Inch
Secondary Workpiece Material
Non-Ferrous
Number of Flutes
4
Shank Type
Square
Overall Length (Decimal)
3.8110
Material
HSS
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.4800
Shank Diameter (Metric)
12.19
Overall Length (Metric)
96.80
Helix Angle
40 degrees
Workpiece Material
Steel, Stainless Steel
Thread Standard
UNF
Thread Size
5/8-18
LxD Ratio
2.5xD
Thread Limit
H5
Chamfer
Modified Bottoming
Thread Pitch (TPI)
18
Blank Standard
302A
Chamfer Length
2P-3P
Drill Size (Metric)
14.59
Ring Color
Blue
Square Length (Decimal)
0.5600
Square Length (Metric)
14.22
Square Size (Decimal)
0.3600
Square Size (Metric)
9.14
Thread Length (Decimal)
0.5120
Thread Length (Metric)
13.00
Usable Length (Decimal)
2.2050
Usable Length (Metric)
56.01
YG-1 Spiral Flute Tap: 5/8-18, H5, Modified Bottoming, 4 Flute, Hardslick, HSS, BI665
$179.34
