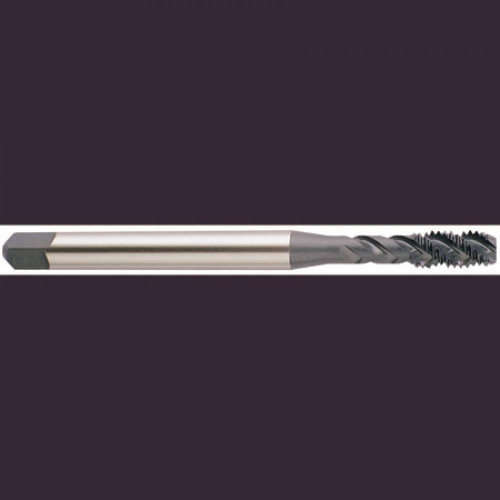

7/16-14 3FL SP FL BOTTOM G/T LONG SHANK HARDSLICK TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-H0523
$115.40

Specifications

Unit of Measure
Imperial
Diameter
0.44 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
6 Inch
Cutting Direction
Right
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.33
Shank Diameter (Metric)
8.20
Overall Length (Metric)
152.40
Neck Diameter (Decimal)
0.32
Neck Diameter (Metric)
7.90
Diameter (Metric)
11.11
Thread Standard
UNC
Thread Size
7/16
Depth Of Cut
2.50 x D
Thread Limit
H3
Chamfer
Modified Bottoming
Thread Pitch
14
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.33 x 0.25
Connection (Metric)
8.20 x 6.15
Drill Size (Decimal)
0.38
Drill Size (Metric)
9.46
Square Length (Decimal)
0.41
Square Length (Metric)
10.41
Square Size (Decimal)
0.25
Square Size 2 (Decimal)
0.41
Square Size (Metric)
6.15
Square Size 2 (Metric)
6.15
Thread Length (Decimal)
0.60
Thread Length (Metric)
15.01
Useable Length (Decimal)
1.85
Useable Length (Metric)
46.99
7/16-14 3FL SP FL BOTTOM G/T LONG SHANK HARDSLICK TAP
$115.40
