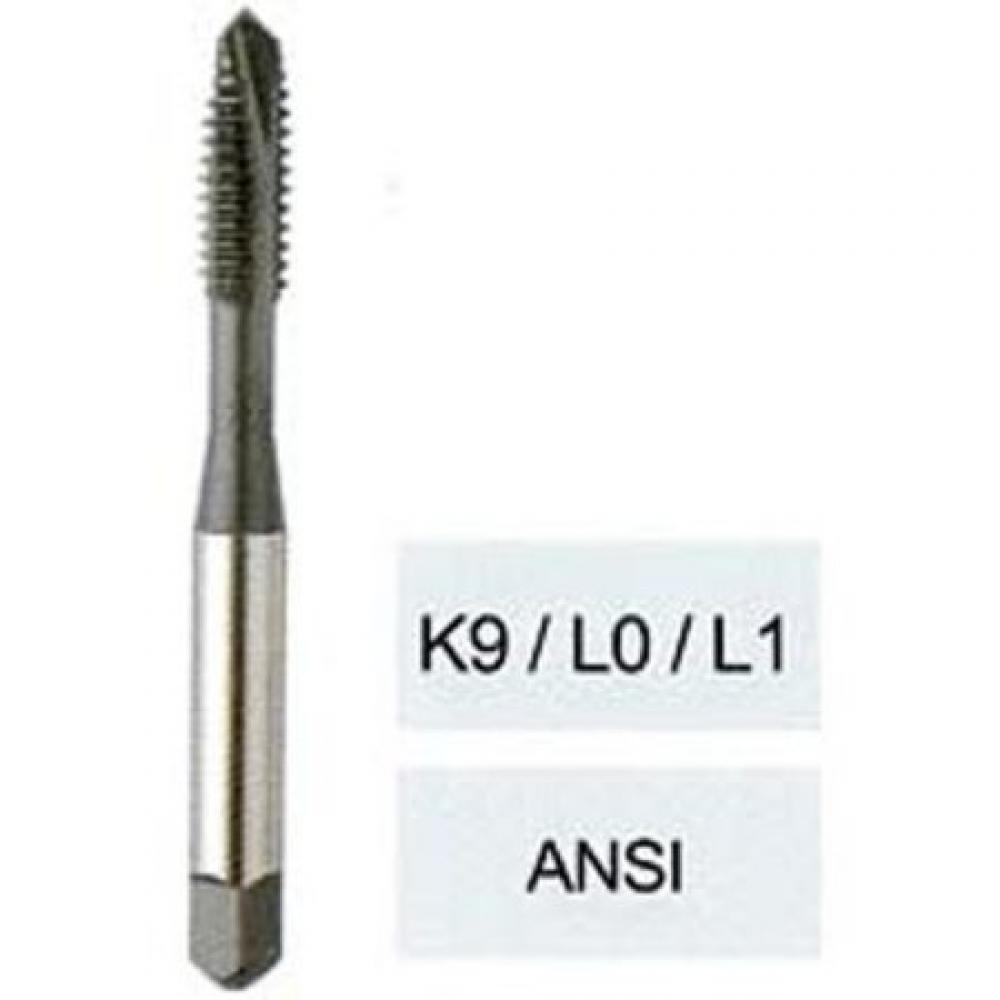

YG-1 Spiral Point Tap: 7/16-14, H3, Plug, 3 Flute, Bright/Uncoated, T7D01523

YG-1

No reviews yet Write a Review
SKU:
YG1-T7D01523
$86.89

YG-1 spiral point tap for steel, 3 flutes, 50 degree helix, plug chamfer, square shank. Bright/uncoated. Manufacturer part number T7D01523.

Specifications

Unit of Measure
Inch
Workpiece Material
Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
6.0000
Coating/Finish
Bright/Uncoated
Shank Diameter (Decimal)
0.3230
Shank Diameter (Metric)
8.20
Overall Length (Metric)
152.40
Helix Angle
50 degrees
Performance Class
General Purpose
Thread Standard
UNC
Thread Size
7/16-14
LxD Ratio
2.5xD
Thread Limit
H3
Chamfer
Plug
Thread Pitch (TPI)
14
Chamfer Length
4P-5P
Secondary Workpiece Material
Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
9.46
Square Length (Decimal)
0.4100
Square Length (Metric)
10.41
Square Size (Decimal)
0.2420
Square Size (Metric)
6.15
Thread Length (Decimal)
0.8660
Thread Length (Metric)
22.00
Usable Length (Decimal)
1.4370
Usable Length (Metric)
36.50
