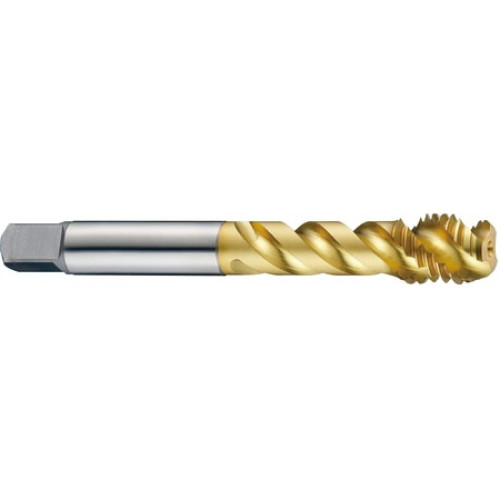

YG-1 Spiral Flute Tap: 7/16-20, H5, TiN, TTS65545

YG-1

No reviews yet Write a Review
SKU:
YG1-TTS65545
$65.42

YG-1 spiral flute tap for steel, stainless steel, cast iron and non-ferrous metals, 45 degree helix, square shank. TiN coating. Manufacturer part number TTS65545.

Specifications

Unit of Measure
Inch
Shank Type
Square
Coating/Finish
TiN
Shank Diameter (Decimal)
0.3230
Shank Diameter (Metric)
8.20
Overall Length (Decimal)
3.1600
Overall Length (Metric)
80.26
Helix Angle
45 degrees
Neck Length (Decimal)
1.8500
Neck Length (Metric)
46.99
Thread Standard
UNF
Thread Size
7/16-20
LxD Ratio
2.5xD
Thread Limit
H5
Thread Pitch (TPI)
20
Chamfer Length
2P-3P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
9.96
Square Length (Decimal)
0.4100
Square Length (Metric)
10.41
Square Size (Decimal)
0.2420
Square Size (Metric)
6.15
Thread Length (Metric)
12.70
Usable Length (Decimal)
1.8500
Usable Length (Metric)
46.99
YG-1 Spiral Flute Tap: 7/16-20, H5, TiN, TTS65545
$65.42
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.

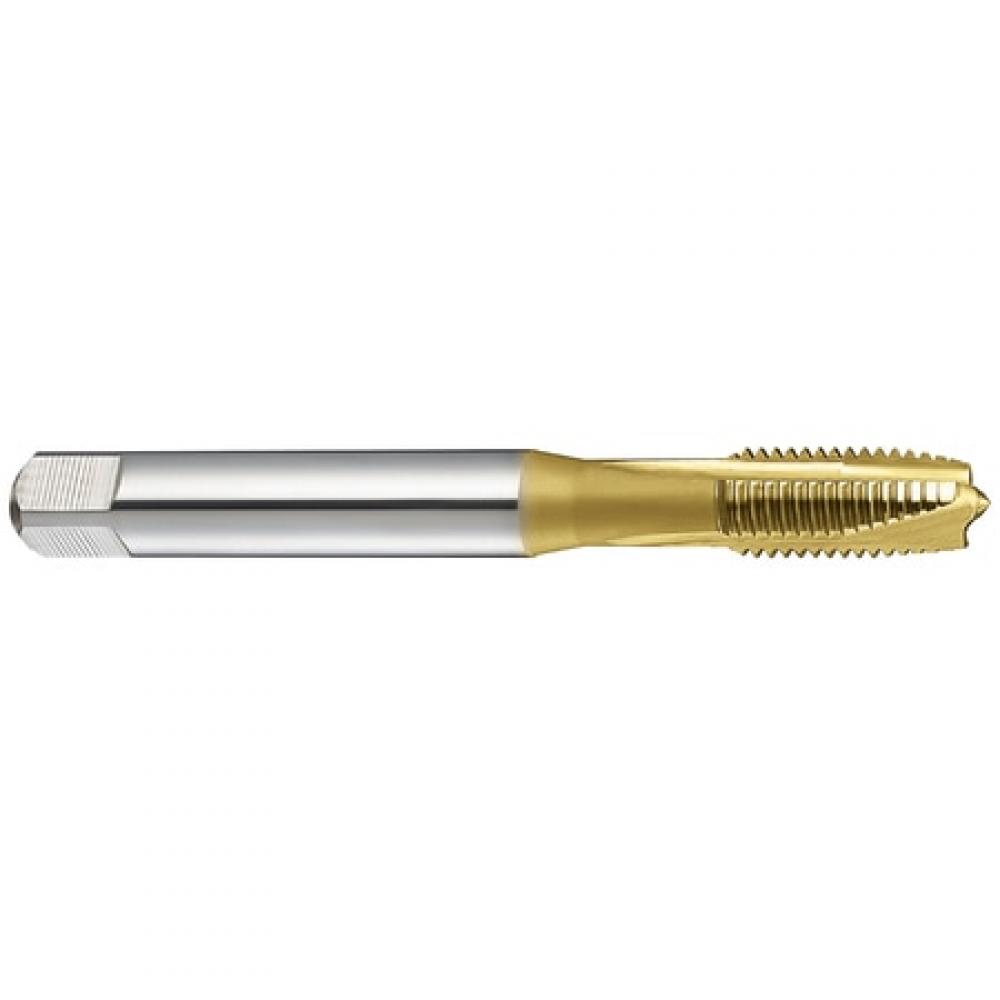

Related Products
