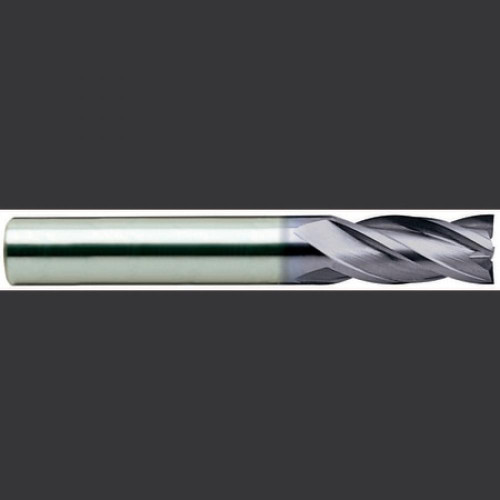

7.5 x 7.5 x 19 x 63 4FL LONG TIALN CARBIDE END MILL

YG-1

No reviews yet Write a Review
SKU:
YG1-EH540075
$68.64

Specifications

Unit of Measure
Metric
Diameter
7.50 mm
Length of Cut
19 mm
Shank Size
7.50 mm
Number Of Flutes
4
Shank Type
Plain
Overall Length
63 mm
Cutting Direction
Right
Coating/Finish
YG TiAIN F
Length of Cut (Decimal)
0.75
Length of Cut (Fractional)
3/4
Shank Diameter (Decimal)
0.30
Shank Diameter (Fractional)
13/44
Overall Length (Decimal)
2.49
Overall Length (Fractional)
2-12/25
Helix Angle
30 degrees
Diameter (Decimal)
0.30
Diameter (Fractional)
13/44
Cut Type
Center Cut
7.5 x 7.5 x 19 x 63 4FL LONG TIALN CARBIDE END MILL
$68.64
