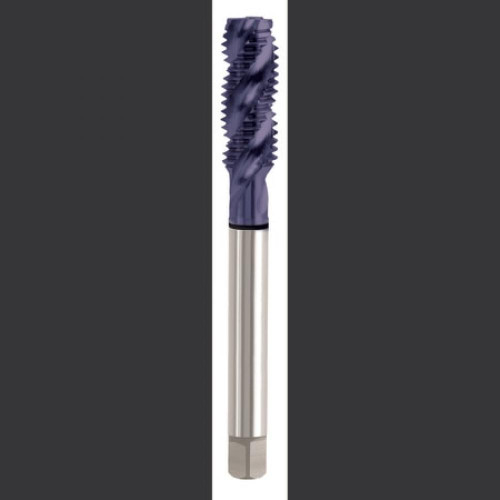

7/8-14 GH6 HSS-EX COMBO MODI SP FL TIN COATED DIN LNGT ANSI SHK TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-T1766C
$196.31

Specifications

Unit of Measure
Imperial
Diameter
0.88 Inch
Shank Type
Square
Overall Length
4.93 Inch
Cutting Direction
Right
Material
HSS
Coating/Finish
TiN
Shank Diameter (Decimal)
0.70
Shank Diameter (Metric)
17.70
Overall Length (Metric)
124.99
Helix Angle
40 degrees
Neck Diameter (Decimal)
0.69
Neck Diameter (Metric)
17.40
Through Coolant
No
Diameter (Metric)
22.23
Thread Standard
UNF
Thread Size
7/8
Depth Of Cut
2.50 x D
Thread Limit
H6
Chamfer
Modified Bottoming
Thread Pitch
14
Blank Standard
DIN/ANSI
Chamfer Length
2P-3P
Connection (Decimal)
0.70 x 0.53
Connection (Metric)
17.70 x 13.28
Drill Size (Decimal)
0.82
Drill Size (Metric)
20.58
Ring Color
Black
Square Length (Decimal)
0.75
Square Length (Metric)
19.05
Square Size (Decimal)
0.53
Square Size 2 (Decimal)
0.75
Square Size (Metric)
13.28
Square Size 2 (Metric)
19.05
Thread Length (Decimal)
0.71
Thread Length (Metric)
18.01
Useable Length (Decimal)
2.82
Useable Length (Metric)
71.50
7/8-14 GH6 HSS-EX COMBO MODI SP FL TIN COATED DIN LNGT ANSI SHK TAP
$196.31
