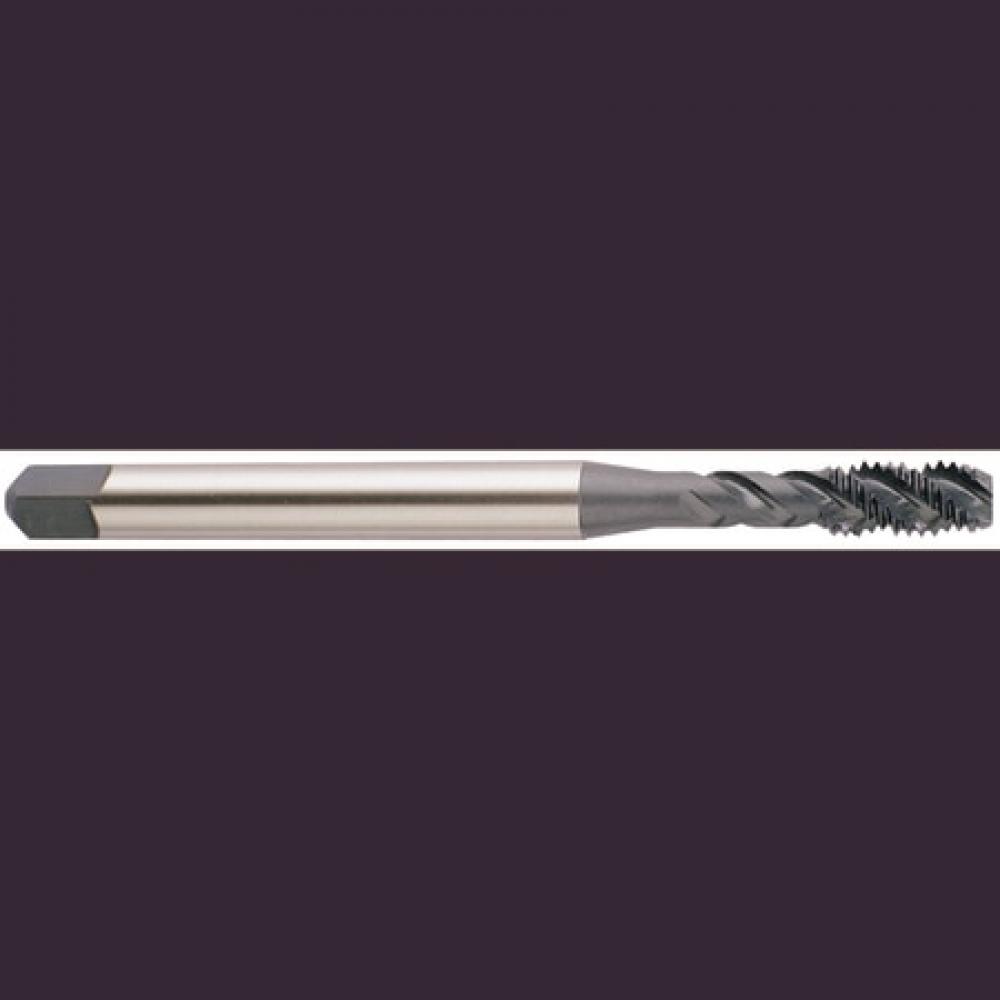

#8-32 3FL SP FL BOTTOM G/T LONG SHANK HARDSLICK TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-H0283
$79.34

Specifications

Unit of Measure
Imperial
Diameter
0.17 Inch
Number Of Flutes
3
Shank Type
Square
Overall Length
6 Inch
Cutting Direction
Right
Coating/Finish
Hardslick
Shank Diameter (Decimal)
0.17
Shank Diameter (Metric)
4.27
Overall Length (Metric)
152.40
Neck Diameter (Decimal)
0.12
Neck Diameter (Metric)
3.05
Diameter (Metric)
4.17
Thread Standard
UNC
Thread Size
#8
Depth Of Cut
2.50 x D
Thread Limit
H3
Chamfer
Modified Bottoming
Thread Pitch
32
Blank Standard
302A
Chamfer Length
2P-3P
Connection (Decimal)
0.17 x 0.14
Connection (Metric)
4.27 x 3.33
Drill Size (Decimal)
0.14
Drill Size (Metric)
3.44
Square Length (Decimal)
0.25
Square Length (Metric)
6.35
Square Size (Decimal)
0.14
Square Size 2 (Decimal)
0.25
Square Size (Metric)
3.33
Square Size 2 (Metric)
6.35
Thread Length (Decimal)
0.28
Thread Length (Metric)
7.01
Useable Length (Decimal)
0.76
Useable Length (Metric)
19.10
#8-32 3FL SP FL BOTTOM G/T LONG SHANK HARDSLICK TAP
$79.34
