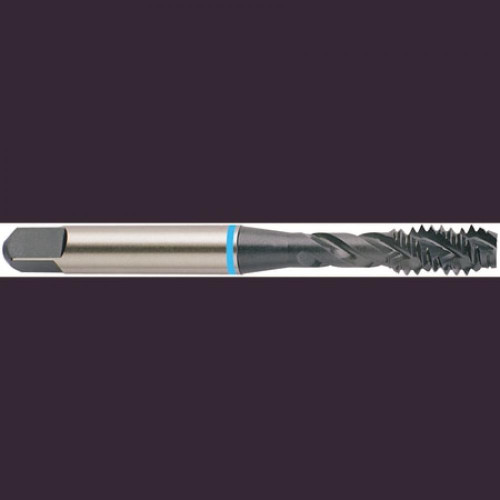

YG-1 Spiral Flute Tap: #8-32, H4, Modified Bottoming, 3 Flute, Steam Oxide, HSS, BB284

YG-1

No reviews yet Write a Review
SKU:
YG1-BB284
$27.27

YG-1 spiral flute tap for steel and stainless steel, 40 degree helix, modified bottoming chamfer, square shank. HSS, steam oxide finish. Manufacturer part number BB284.

Specifications

Unit of Measure
Inch
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
2.1260
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.1680
Shank Diameter (Metric)
4.27
Overall Length (Metric)
54.00
Helix Angle
40 degrees
Workpiece Material
Steel, Stainless Steel
Thread Standard
UNC
Thread Size
#8-32
LxD Ratio
2.5xD
Thread Limit
H4
Chamfer
Modified Bottoming
Thread Pitch (TPI)
32
Blank Standard
302A
Chamfer Length
2P-3P
Secondary Workpiece Material
Non-Ferrous
Drill Size (Decimal)
0.1356
Drill Size (Metric)
3.44
Ring Color
Blue
Square Length (Decimal)
0.2500
Square Length (Metric)
6.35
Square Size (Decimal)
0.1310
Square Size (Metric)
3.33
Thread Length (Decimal)
0.2760
Thread Length (Metric)
7.01
Usable Length (Decimal)
0.7520
Usable Length (Metric)
19.10
YG-1 Spiral Flute Tap: #8-32, H4, Modified Bottoming, 3 Flute, Steam Oxide, HSS, BB284
$27.27
