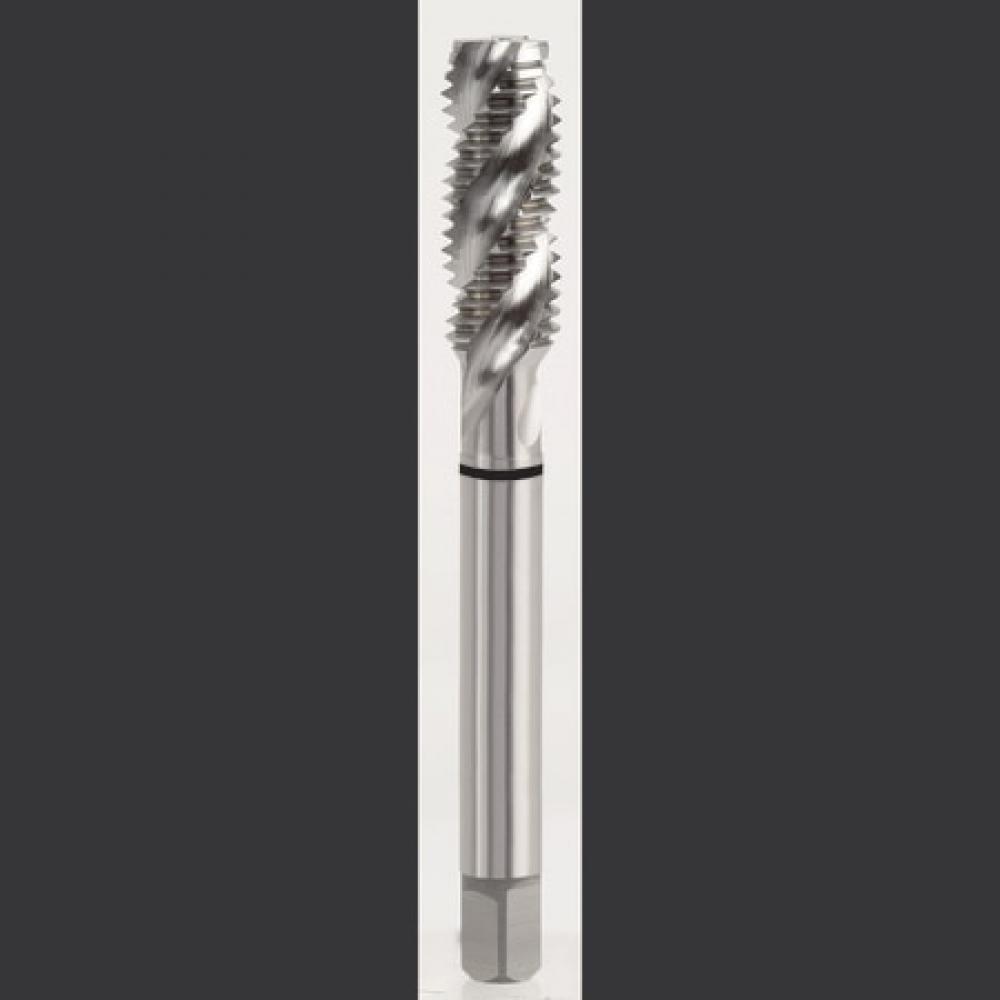

YG-1 Spiral Flute Tap: 9/16-18, H5, TiN, TTS65625

YG-1

No reviews yet Write a Review
SKU:
YG1-TTS65625
$114.52

YG-1 spiral flute tap for steel, stainless steel, cast iron and non-ferrous metals, 45 degree helix, square shank. TiN coating. Manufacturer part number TTS65625.

Specifications

Unit of Measure
Inch
Shank Type
Square
Coating/Finish
TiN
Shank Diameter (Decimal)
0.4290
Shank Diameter (Metric)
10.90
Overall Length (Decimal)
3.5900
Overall Length (Metric)
91.19
Helix Angle
45 degrees
Neck Length (Decimal)
2.0670
Neck Length (Metric)
52.50
Thread Standard
UNF
Thread Size
9/16-18
LxD Ratio
2.5xD
Thread Limit
H5
Thread Pitch (TPI)
18
Chamfer Length
2P-3P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
13.00
Square Length (Decimal)
0.5000
Square Length (Metric)
12.70
Square Size (Decimal)
0.3220
Square Size (Metric)
8.18
Thread Length (Metric)
14.12
Usable Length (Decimal)
2.0670
Usable Length (Metric)
52.50
YG-1 Spiral Flute Tap: 9/16-18, H5, TiN, TTS65625
$114.52
