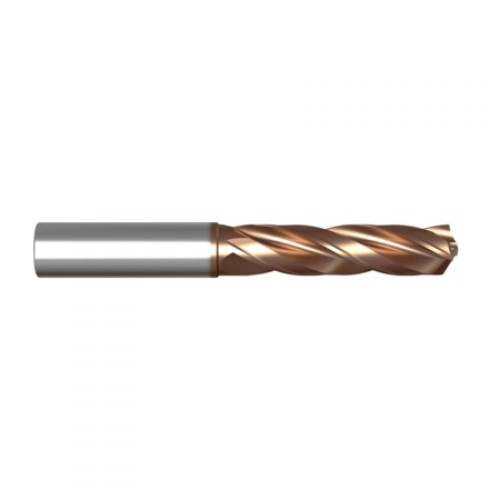

YG-1 Stub Drill: 9/32" Dia, 1.6142" Flute Length, 3.1102" OAL, 140° Point, 3xD, Internal Coolant, Solid Carbide, DGR496018

YG-1

No reviews yet Write a Review
SKU:
YG1-DGR496018
$216.35

YG-1 stub drill for steel and cast iron, 140 degree point, internal coolant. Solid carbide, H-Coating. Manufacturer part number DGR496018.

Specifications

Unit of Measure
Inch
Cutting Diameter (Metric)
7.14
Shank Diameter (Metric)
7.94
Overall Length (Metric)
79.00
Material
Solid Carbide
Shank Diameter (Decimal)
0.3125
Shank Diameter (Fractional)
5/16
Overall Length (Decimal)
3.1102
Coating/Finish
H-Coating
Type
High Feed
Point Angle
140 degrees
Flute Length (Decimal)
1.6142
LxD Ratio
3xD
Flute Length (Metric)
41.00
Size System
Fractional
Cutting Diameter (Decimal)
0.2813
Coolant Option
Internal Coolant
Workpiece Material
Steel, Cast Iron
Cutting Diameter (Fractional)
9/32
Cutting Diameter Tolerance
m7
Shank Tolerance
h6
Blank Standard
DIN 6537
YG-1 Stub Drill: 9/32" Dia, 1.6142" Flute Length, 3.1102" OAL, 140° Point, 3xD, Internal Coolant, Solid Carbide, DGR496018
$216.35
