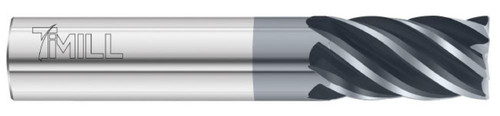

Fullerton Corner Radius End Mill: 3/8" Dia, 1" LOC, 3" OAL, .060" Corner Radius, 6 Flute, FULCOAT 13, 29111

Fullerton

No reviews yet Write a Review
SKU:
FUL-29111
$96.42

Fullerton corner radius end mill for high-temp alloys, 6 flutes, 38 degree helix, center cutting, external coolant. Solid carbide, FULCOAT 13 coating. Manufacturer part number 29111.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
1.0000
Overall Length (Decimal)
3.0000
Double Ended
No
Hand Direction
Right
Coating/Finish
FULCOAT 13
Cutting Diameter (Metric)
9.53
Length of Cut (Metric)
25.40
Length of Cut (Fractional)
1
Shank Diameter (Metric)
9.53
Shank Diameter (Fractional)
3/8
Overall Length (Metric)
76.20
Overall Length (Fractional)
3
Helix Angle
38 degrees
Cutting Diameter (Decimal)
0.3750
Number of Flutes
6
Cutting Diameter (Fractional)
3/8
Shank Diameter (Decimal)
0.3750
Length Type
Standard
Color
Blue-Black
Coolant Option
External Coolant
Corner Radius (Decimal)
0.0600
Corner Radius (Metric)
1.52
End Type
Corner Radius
Helix Direction
Right
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.00/-0.05
Material
Solid Carbide
Shank Tolerance
h6
Workpiece Material
High-Temp Alloy
Fullerton Corner Radius End Mill: 3/8" Dia, 1" LOC, 3" OAL, .060" Corner Radius, 6 Flute, FULCOAT 13, 29111
$96.42
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
