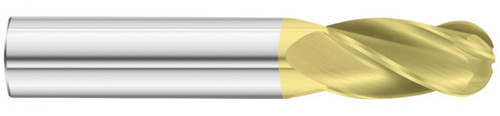

Fullerton Ball End Mill: 1/32" Dia, 3/32" LOC, 1-1/2" OAL, 4 Flute, TiN, 30490

Fullerton

No reviews yet Write a Review
SKU:
FUL-30490
$17.06

Fullerton ball end mill, 4 flutes, 30 degree helix, external coolant. Solid carbide, TiN coating. Manufacturer part number 30490.

Specifications

Length of Cut (Decimal)
0.0938
Overall Length (Decimal)
1.5000
Double Ended
No
Hand Direction
Right
Coating/Finish
TiN
Cutting Diameter (Metric)
0.79
Length of Cut (Metric)
2.38
Length of Cut (Fractional)
3/32
Shank Diameter (Metric)
3.18
Shank Diameter (Fractional)
1/8
Overall Length (Metric)
38.10
Overall Length (Fractional)
1-1/2
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.0313
Number of Flutes
4
Cutting Diameter (Fractional)
1/32
Shank Diameter (Decimal)
0.1250
Unit of Measure
Inch
Length Type
Standard
Color
Gold-Yellow
Coolant Option
External Coolant
End Type
Ball
Helix Direction
Right
Size System
Fractional
Material
Solid Carbide
Fullerton Ball End Mill: 1/32" Dia, 3/32" LOC, 1-1/2" OAL, 4 Flute, TiN, 30490
$17.06
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
