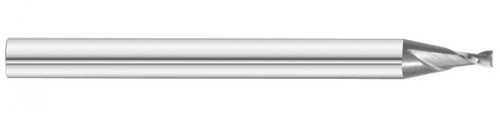

Fullerton Square End Mill: .018" Dia, .054" LOC, 1-1/2" OAL, 2 Flute, Uncoated, 30908

Fullerton

No reviews yet Write a Review
SKU:
FUL-30908
$21.81

.018" Dia, .054" LOC, 1-1/2" OAL Fullerton Square End Mill, manufacturer part number 30908.

Specifications: Cutting Diameter: 0.0180 in (0.46 mm); Length of Cut: 0.0540 in (1.37 mm); Overall Length: 1-1/2 in (1.5000 in, 38.10 mm); Shank Diameter: 1/8 in (0.1250 in, 3.18 mm); Number of Flutes: 2; Helix Angle: 30 degrees; Double Ended: No; Length Type: Sub Mini; Coolant Option: External Coolant; End Type: Square; Hand Direction: Right; Helix Direction: Right.

Coating/Finish: Uncoated. Unit of measure: Inch.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.0540
Overall Length (Decimal)
1.5000
Double Ended
No
Hand Direction
Right
Cutting Diameter (Metric)
0.46
Length of Cut (Metric)
1.37
Shank Diameter (Metric)
3.18
Shank Diameter (Fractional)
1/8
Overall Length (Metric)
38.10
Overall Length (Fractional)
1-1/2
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.0180
Number of Flutes
2
Shank Diameter (Decimal)
0.1250
Length Type
Sub Mini
Coating/Finish
Uncoated
Coolant Option
External Coolant
End Type
Square
Helix Direction
Right
Size System
Decimal
Fullerton Square End Mill: .018" Dia, .054" LOC, 1-1/2" OAL, 2 Flute, Uncoated, 30908
$21.81
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
