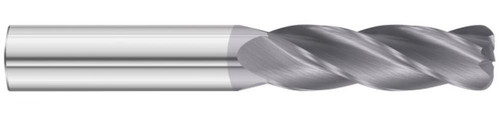

Fullerton Corner Radius End Mill: 1/2" Dia, 2" LOC, 4" OAL, .090" Corner Radius, 4 Flute, TiAlN, 31594

Fullerton

No reviews yet Write a Review
SKU:
FUL-31594
$148.40

1/2" Dia, 2" LOC, 4" OAL, .090" Corner Radius Fullerton Corner Radius End Mill, manufacturer part number 31594.

Specifications: Cutting Diameter: 1/2 in (0.5000 in, 12.70 mm); Length of Cut: 2 in (2.0000 in, 50.80 mm); Overall Length: 4 in (4.0000 in, 101.60 mm); Corner Radius: 0.0900 in (2.29 mm); Shank Diameter: 1/2 in (0.5000 in, 12.70 mm); Number of Flutes: 4; Helix Angle: 30 degrees; Double Ended: No; Color: Violet-Gray; Coolant Option: External Coolant; End Type: Corner Radius; Hand Direction: Right; Helix Direction: Right; Length Type: Extra Long.

Coating/Finish: TiAlN. Unit of measure: Inch.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
2.0000
Overall Length (Decimal)
4.0000
Double Ended
No
Hand Direction
Right
Coating/Finish
TiAlN
Cutting Diameter (Metric)
12.70
Length of Cut (Metric)
50.80
Length of Cut (Fractional)
2
Shank Diameter (Metric)
12.70
Shank Diameter (Fractional)
1/2
Overall Length (Metric)
101.60
Overall Length (Fractional)
4
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.5000
Number of Flutes
4
Cutting Diameter (Fractional)
1/2
Shank Diameter (Decimal)
0.5000
Length Type
Extra Long
Color
Violet-Gray
Coolant Option
External Coolant
Corner Radius (Decimal)
0.0900
Corner Radius (Metric)
2.29
End Type
Corner Radius
Helix Direction
Right
Size System
Fractional
Fullerton Corner Radius End Mill: 1/2" Dia, 2" LOC, 4" OAL, .090" Corner Radius, 4 Flute, TiAlN, 31594
$148.40
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
