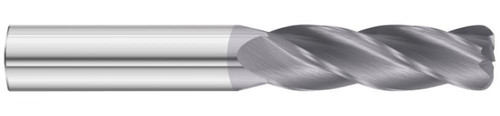

Fullerton Corner Radius End Mill: 3/4" Dia, 3" LOC, 6" OAL, .090" Corner Radius, 4 Flute, TiAlN, 31622

Fullerton

No reviews yet Write a Review
SKU:
FUL-31622
$437.54

Fullerton corner radius end mill, 4 flutes, 30 degree helix, center cutting, external coolant. Solid carbide, TiAlN coating. Manufacturer part number 31622.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
3.0000
Overall Length (Decimal)
6.0000
Double Ended
No
Hand Direction
Right
Coating/Finish
TiAlN
Cutting Diameter (Metric)
19.05
Length of Cut (Metric)
76.20
Length of Cut (Fractional)
3
Shank Diameter (Metric)
19.05
Shank Diameter (Fractional)
3/4
Overall Length (Metric)
152.40
Overall Length (Fractional)
6
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.7500
Number of Flutes
4
Cutting Diameter (Fractional)
3/4
Shank Diameter (Decimal)
0.7500
Length Type
Extra Long
Color
Violet-Gray
Coolant Option
External Coolant
Corner Radius (Decimal)
0.0900
Corner Radius (Metric)
2.29
End Type
Corner Radius
Helix Direction
Right
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.00/-0.05
Material
Solid Carbide
Shank Tolerance
h6
Fullerton Corner Radius End Mill: 3/4" Dia, 3" LOC, 6" OAL, .090" Corner Radius, 4 Flute, TiAlN, 31622
$437.54
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
