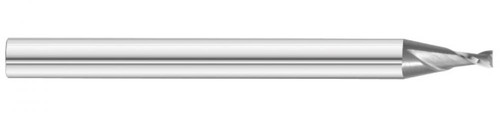

Fullerton Square End Mill: .011" Dia, .0165" LOC, 1-1/2" OAL, 2 Flute, Uncoated, 32353

Fullerton

No reviews yet Write a Review
SKU:
FUL-32353
$22.40

Fullerton square end mill, 2 flutes, 30 degree helix, center cutting, external coolant. Solid carbide, uncoated. Manufacturer part number 32353.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.0165
Overall Length (Decimal)
1.5000
Double Ended
No
Hand Direction
Right
Cutting Diameter (Metric)
0.28
Length of Cut (Metric)
0.42
Shank Diameter (Metric)
3.18
Shank Diameter (Fractional)
1/8
Overall Length (Metric)
38.10
Overall Length (Fractional)
1-1/2
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.0110
Number of Flutes
2
Shank Diameter (Decimal)
0.1250
Length Type
Sub Mini Stub
Coating/Finish
Uncoated
Coolant Option
External Coolant
End Type
Square
Helix Direction
Right
Size System
Decimal
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0005/-0.0005
Cutting Diameter Tolerance (Metric)
+0.02/-0.02
Material
Solid Carbide
Shank Tolerance
h6
Fullerton Square End Mill: .011" Dia, .0165" LOC, 1-1/2" OAL, 2 Flute, Uncoated, 32353
$22.40
