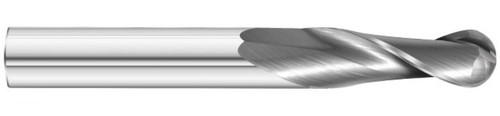

Fullerton Ball End Mill: 1/2" Dia, 1-1/2" LOC, 4" OAL, 2 Flute, Uncoated, 32585

Fullerton

No reviews yet Write a Review
SKU:
FUL-32585
$124.56

1/2" Dia, 1-1/2" LOC, 4" OAL Fullerton Ball End Mill, manufacturer part number 32585.

Specifications: Cutting Diameter: 1/2 in (0.5000 in, 12.70 mm); Length of Cut: 1-1/2 in (1.5000 in, 38.10 mm); Overall Length: 4 in (4.0000 in, 101.60 mm); Shank Diameter: 1/2 in (0.5000 in, 12.70 mm); Number of Flutes: 2; Helix Angle: 30 degrees; Double Ended: No; Coolant Option: External Coolant; End Type: Ball; Hand Direction: Right; Helix Direction: Right; Length Type: Extra Long.

Coating/Finish: Uncoated. Unit of measure: Inch.

Specifications

Length of Cut (Decimal)
1.5000
Overall Length (Decimal)
4.0000
Double Ended
No
Hand Direction
Right
Cutting Diameter (Metric)
12.70
Length of Cut (Metric)
38.10
Length of Cut (Fractional)
1-1/2
Shank Diameter (Metric)
12.70
Shank Diameter (Fractional)
1/2
Overall Length (Metric)
101.60
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.5000
Number of Flutes
2
Cutting Diameter (Fractional)
1/2
Shank Diameter (Decimal)
0.5000
Unit of Measure
Inch
Length Type
Extra Long
Coating/Finish
Uncoated
Coolant Option
External Coolant
End Type
Ball
Helix Direction
Right
Overall Length (Fractional)
4
Size System
Fractional
Fullerton Ball End Mill: 1/2" Dia, 1-1/2" LOC, 4" OAL, 2 Flute, Uncoated, 32585
$124.56
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
