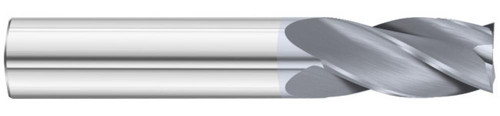

Fullerton Square End Mill: 31/64" Dia, 1" LOC, 3" OAL, 4 Flute, TiN, 33121

Fullerton

No reviews yet Write a Review
SKU:
FUL-33121
$94.99

Fullerton square end mill, 4 flutes, 30 degree helix, center cutting, external coolant. Solid carbide, TiN coating. Manufacturer part number 33121.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
1.0000
Overall Length (Decimal)
3.0000
Double Ended
No
Hand Direction
Right
Coating/Finish
TiN
Cutting Diameter (Metric)
12.30
Length of Cut (Metric)
25.40
Length of Cut (Fractional)
1
Shank Diameter (Metric)
12.70
Shank Diameter (Fractional)
1/2
Overall Length (Metric)
76.20
Overall Length (Fractional)
3
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.4844
Number of Flutes
4
Cutting Diameter (Fractional)
31/64
Shank Diameter (Decimal)
0.5000
Length Type
Standard
Color
Gold-Yellow
Coolant Option
External Coolant
End Type
Square
Helix Direction
Right
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.00/-0.05
Material
Solid Carbide
Shank Tolerance
h6
