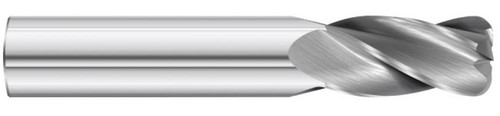

Fullerton Corner Radius End Mill: 1/2" Dia, 1" LOC, 3" OAL, .030" Corner Radius, 4 Flute, Uncoated, 33722

Fullerton

No reviews yet Write a Review
SKU:
FUL-33722
$95.73

Fullerton corner radius end mill, 4 flutes, 30 degree helix, external coolant. Solid carbide, uncoated. Manufacturer part number 33722.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
1.0000
Overall Length (Decimal)
3.0000
Double Ended
No
Hand Direction
Right
Cutting Diameter (Metric)
12.70
Length of Cut (Metric)
25.40
Length of Cut (Fractional)
1
Shank Diameter (Metric)
12.70
Shank Diameter (Fractional)
1/2
Overall Length (Metric)
76.20
Overall Length (Fractional)
3
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.5000
Number of Flutes
4
Cutting Diameter (Fractional)
1/2
Shank Diameter (Decimal)
0.5000
Length Type
Standard
Coating/Finish
Uncoated
Coolant Option
External Coolant
Corner Radius (Decimal)
0.0300
Corner Radius (Metric)
0.76
End Type
Corner Radius
Helix Direction
Right
Size System
Fractional
Material
Solid Carbide
Fullerton Corner Radius End Mill: 1/2" Dia, 1" LOC, 3" OAL, .030" Corner Radius, 4 Flute, Uncoated, 33722
$95.73
