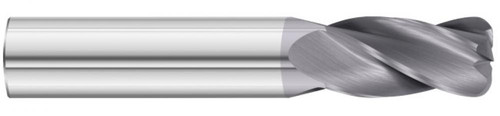

Fullerton Corner Radius End Mill: 5/8" Dia, 1-1/2" LOC, 3-1/2" OAL, .125" Corner Radius, 4 Flute, TiAlN, 33842

Fullerton

No reviews yet Write a Review
SKU:
FUL-33842
$189.89

Fullerton corner radius end mill, 4 flutes, 30 degree helix, center cutting, external coolant. Solid carbide, TiAlN coating. Manufacturer part number 33842.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
1.5000
Overall Length (Decimal)
3.5000
Double Ended
No
Hand Direction
Right
Coating/Finish
TiAlN
Cutting Diameter (Metric)
15.88
Length of Cut (Metric)
38.10
Length of Cut (Fractional)
1-1/2
Shank Diameter (Metric)
15.88
Shank Diameter (Fractional)
5/8
Overall Length (Metric)
88.90
Overall Length (Fractional)
3-1/2
Helix Angle
30 degrees
Cutting Diameter (Decimal)
0.6250
Number of Flutes
4
Cutting Diameter (Fractional)
5/8
Shank Diameter (Decimal)
0.6250
Length Type
Standard
Color
Violet-Gray
Coolant Option
External Coolant
Corner Radius (Decimal)
0.1250
Corner Radius (Metric)
3.18
End Type
Corner Radius
Helix Direction
Right
Size System
Fractional
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.00/-0.05
Material
Solid Carbide
Shank Tolerance
h6
Fullerton Corner Radius End Mill: 5/8" Dia, 1-1/2" LOC, 3-1/2" OAL, .125" Corner Radius, 4 Flute, TiAlN, 33842
$189.89
