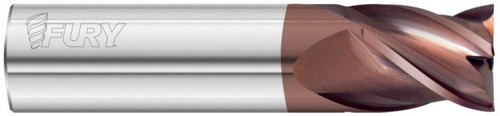

Fullerton Square End Mill: 1/4" Dia, 3/8" LOC, 2" OAL, 4 Flute, FULCOAT 20, 35067

Fullerton

No reviews yet Write a Review
SKU:
FUL-35067
$33.76

Fullerton square end mill for steel, stainless steel, high-temp alloys and hardened steel, 4 flutes, variable helix, center cutting, external coolant. Solid carbide, FULCOAT 20 coating. Manufacturer part number 35067.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.3750
Overall Length (Decimal)
2.0000
Double Ended
No
Hand Direction
Right
Coating/Finish
FULCOAT 20
Cutting Diameter (Metric)
6.35
Length of Cut (Metric)
9.53
Length of Cut (Fractional)
3/8
Shank Diameter (Metric)
6.35
Shank Diameter (Fractional)
1/4
Overall Length (Metric)
50.80
Overall Length (Fractional)
2
Cutting Diameter (Decimal)
0.2500
Number of Flutes
4
Cutting Diameter (Fractional)
1/4
Shank Diameter (Decimal)
0.2500
Length Type
Stub
Color
Old Rose
Coolant Option
External Coolant
End Type
Square
Helix Direction
Right
Size System
Fractional
Variable Helix
Yes
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.00/-0.05
Material
Solid Carbide
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, High-Temp Alloy, Hardened Steel
Fullerton Square End Mill: 1/4" Dia, 3/8" LOC, 2" OAL, 4 Flute, FULCOAT 20, 35067
$33.76
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
