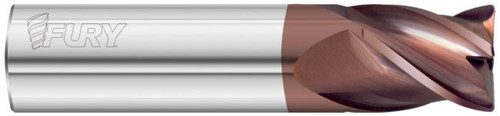

Fullerton Corner Radius End Mill: 4.00mm Dia, 8.00mm LOC, 50.00mm OAL, 0.75mm Corner Radius, 4 Flute, FULCOAT 20, 35195

Fullerton

No reviews yet Write a Review
SKU:
FUL-35195
$29.80

Fullerton corner radius end mill for steel, stainless steel, high-temp alloys and hardened steel, 4 flutes, variable helix, center cutting, external coolant. Solid carbide, FULCOAT 20 coating. Manufacturer part number 35195.

Specifications

Unit of Measure
Metric
Length of Cut (Metric)
8.00
Overall Length (Metric)
50.00
Double Ended
No
Hand Direction
Right
Coating/Finish
FULCOAT 20
Cutting Diameter (Decimal)
0.1575
Cutting Diameter (Metric)
4.00
Length of Cut (Decimal)
0.3150
Shank Diameter (Decimal)
0.1575
Shank Diameter (Metric)
4.00
Overall Length (Decimal)
1.9685
Number of Flutes
4
Length Type
Stub
Color
Old Rose
Coolant Option
External Coolant
Corner Radius (Decimal)
0.0295
Corner Radius (Metric)
0.75
End Type
Corner Radius
Helix Direction
Right
Size System
Metric
Variable Helix
Yes
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
Cutting Diameter Tolerance (Metric)
+0.00/-0.05
Material
Solid Carbide
Shank Tolerance
h6
Workpiece Material
Steel, Stainless Steel, High-Temp Alloy, Hardened Steel
Fullerton Corner Radius End Mill: 4.00mm Dia, 8.00mm LOC, 50.00mm OAL, 0.75mm Corner Radius, 4 Flute, FULCOAT 20, 35195
$29.80
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
