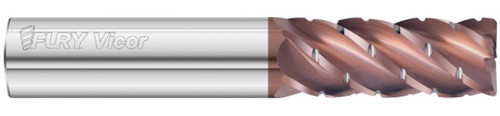

Fullerton Corner Radius End Mill: 1" Dia, 2-5/8" LOC, 5" OAL, .060" Corner Radius, 4 Flute, FULCOAT 20, 35612

Fullerton

No reviews yet Write a Review
SKU:
FUL-35612
$662.02

1" Dia, 2-5/8" LOC, 5" OAL, .060" Corner Radius Fullerton Corner Radius End Mill, manufacturer part number 35612.

Specifications: Cutting Diameter: 1 in (1.0000 in, 25.40 mm); Length of Cut: 2-5/8 in (2.6250 in, 66.68 mm); Overall Length: 5 in (5.0000 in, 127.00 mm); Corner Radius: 0.0600 in (1.52 mm); Shank Diameter: 1 in (1.0000 in, 25.40 mm); Number of Flutes: 4; Double Ended: No; Color: Old Rose; Length Type: Standard; Coolant Option: External Coolant; End Type: Corner Radius; Variable Helix: Yes; Hand Direction: Right; Helix Direction: Right.

Coating/Finish: FULCOAT 20. Unit of measure: Inch.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
2.6250
Overall Length (Decimal)
5.0000
Double Ended
No
Hand Direction
Right
Coating/Finish
FULCOAT 20
Cutting Diameter (Metric)
25.40
Length of Cut (Metric)
66.68
Length of Cut (Fractional)
2-5/8
Shank Diameter (Metric)
25.40
Shank Diameter (Fractional)
1
Overall Length (Metric)
127.00
Overall Length (Fractional)
5
Cutting Diameter (Decimal)
1.0000
Number of Flutes
4
Cutting Diameter (Fractional)
1
Shank Diameter (Decimal)
1.0000
Length Type
Standard
Color
Old Rose
Coolant Option
External Coolant
Corner Radius (Decimal)
0.0600
Corner Radius (Metric)
1.52
End Type
Corner Radius
Helix Direction
Right
Size System
Fractional
Variable Helix
Yes
Fullerton Corner Radius End Mill: 1" Dia, 2-5/8" LOC, 5" OAL, .060" Corner Radius, 4 Flute, FULCOAT 20, 35612
$662.02
