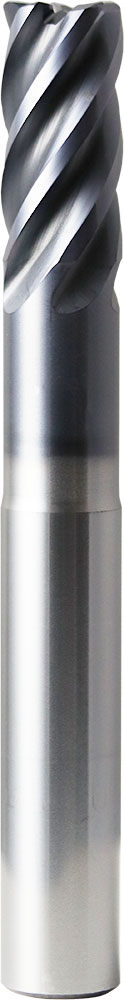

Fullerton 37866

Fullerton

No reviews yet Write a Review
SKU:
FUL-37866
$233.53

Specifications

Unit of Measure
Imperial
Length of Cut
0.63 Inch
Overall Length
6 Inch
Double Ended
No
Cutting Direction
Right
Coating/Finish
FULCOAT 20
Cutting Diameter (Metric)
12.70
Length of Cut (Metric)
15.88
Length of Cut (Fractional)
5/8
Shank Diameter (Metric)
12.70
Shank Diameter (Fractional)
1/2
Overall Length (Metric)
152.40
Overall Length (Fractional)
6
Helix Angle
40 degrees
Reach (Decimal)
3.38
Reach (Metric)
85.73
Reach (Fractional)
3-3/8
Neck Diameter (Decimal)
0.48
Neck Diameter (Metric)
12.19
Cutting Diameter
0.50 Inch
Number of Flutes
5
Cutting Diameter (Fractional)
1/2
Shank Diameter
0.50 Inch
Length
Long Reach
Color
Old Rose
Drill Ratio
LR
Flute Spiral
RH
Radius (Decimal)
0.03
Radius (Metric)
0.76
Fullerton 37866
$233.53
