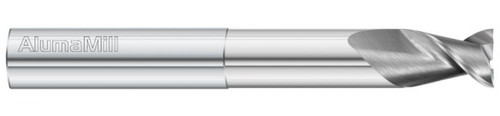

Fullerton Square End Mill: 3/8" Dia, 5/8" LOC, 4" OAL, 1-1/8" Reach, 2 Flute, Uncoated, 38227

Fullerton

No reviews yet Write a Review
SKU:
FUL-38227
$95.81

3/8" Dia, 5/8" LOC, 4" OAL Fullerton Square End Mill, manufacturer part number 38227.

Specifications: Cutting Diameter: 3/8 in (0.3750 in, 9.53 mm); Length of Cut: 5/8 in (0.6250 in, 15.88 mm); Overall Length: 4 in (4.0000 in, 101.60 mm); Reach: 1-1/8 in (1.1250 in, 28.58 mm); Neck Diameter: 0.3600 in (9.14 mm); Shank Diameter: 3/8 in (0.3750 in, 9.53 mm); Number of Flutes: 2; Helix Angle: 45 degrees; Double Ended: No; Length Type: Long Reach; Coolant Option: External Coolant; End Type: Square; Hand Direction: Right; Helix Direction: Right.

Coating/Finish: Uncoated. Unit of measure: Inch.

Specifications

Unit of Measure
Inch
Length of Cut (Decimal)
0.6250
Overall Length (Decimal)
4.0000
Double Ended
No
Hand Direction
Right
Cutting Diameter (Metric)
9.53
Length of Cut (Metric)
15.88
Length of Cut (Fractional)
5/8
Shank Diameter (Metric)
9.53
Shank Diameter (Fractional)
3/8
Overall Length (Metric)
101.60
Overall Length (Fractional)
4
Helix Angle
45 degrees
Reach (Decimal)
1.1250
Reach (Metric)
28.58
Reach (Fractional)
1-1/8
Neck Diameter (Decimal)
0.3600
Neck Diameter (Metric)
9.14
Cutting Diameter (Decimal)
0.3750
Number of Flutes
2
Cutting Diameter (Fractional)
3/8
Shank Diameter (Decimal)
0.3750
Length Type
Long Reach
Coating/Finish
Uncoated
Coolant Option
External Coolant
End Type
Square
Helix Direction
Right
Size System
Fractional
