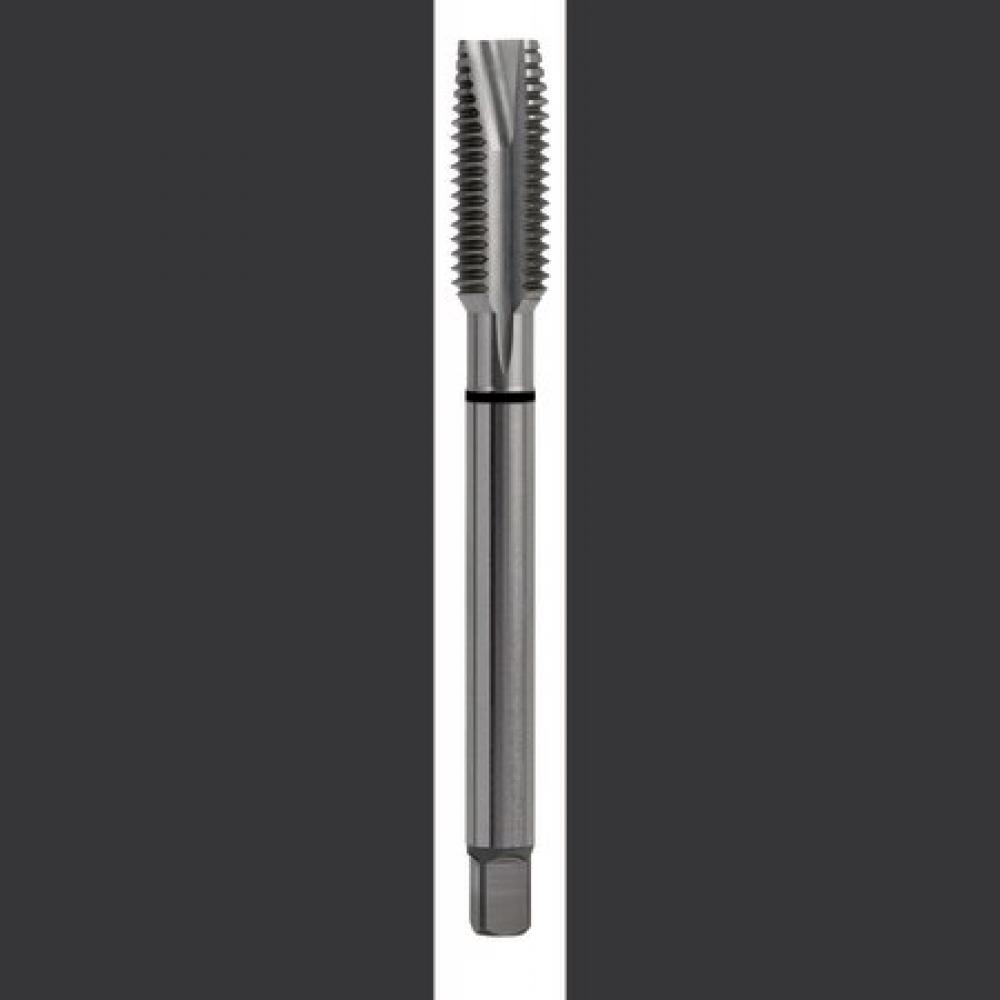

HSS-EX COMBO MODI SP PT STEAM OXIDE DIN LNGT ANSI SHK TAP

YG-1

No reviews yet Write a Review
SKU:
YG1-TC725S
$115.61

Specifications

Unit of Measure
Imperial
Diameter
0.75 Inch
Shank Type
Square
Overall Length
4.34 Inch
Cutting Direction
Right
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.59
Shank Diameter (Metric)
14.99
Overall Length (Metric)
110.01
Neck Diameter (Decimal)
0.58
Neck Diameter (Metric)
14.66
Through Coolant
No
Diameter (Metric)
19.05
Thread Standard
UNF
Thread Size
3/4
Depth Of Cut
3 x D
Thread Limit
H5
Chamfer
Plug
Thread Pitch
16
Blank Standard
DIN/ANSI
Chamfer Length
4P-5P
Connection (Decimal)
0.59 x 0.45
Connection (Metric)
14.99 x 11.23
Drill Size (Decimal)
0.70
Drill Size (Metric)
17.61
Ring Color
Black
Square Length (Decimal)
0.69
Square Length (Metric)
17.53
Square Size (Decimal)
0.45
Square Size 2 (Decimal)
0.69
Square Size (Metric)
11.23
Square Size 2 (Metric)
17.53
Thread Length (Decimal)
1.21
Thread Length (Metric)
30.51
Useable Length (Decimal)
2
Useable Length (Metric)
50.80
$115.61
