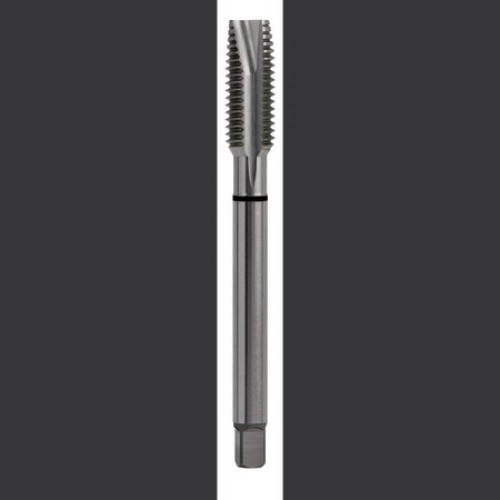

YG-1 Spiral Point Tap: 7/8-9, H6, Steam Oxide, HSS, TC746S

YG-1

No reviews yet Write a Review
SKU:
YG1-TC746S
$142.91

YG-1 spiral point tap for steel, stainless steel, cast iron and non-ferrous metals, square shank. HSS, steam oxide finish. Manufacturer part number TC746S.

Specifications

Unit of Measure
Inch
Shank Type
Square
Overall Length (Decimal)
5.5120
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.6970
Shank Diameter (Metric)
17.70
Overall Length (Metric)
140.00
Thread Standard
UNC
Thread Size
7/8-9
LxD Ratio
3xD
Thread Limit
H6
Thread Pitch (TPI)
9
Blank Standard
DIN/ANSI
Chamfer Length
4P-5P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
19.66
Square Length (Decimal)
0.7500
Square Length (Metric)
19.05
Square Size (Decimal)
0.5230
Square Size (Metric)
13.28
Thread Length (Decimal)
1.3390
Thread Length (Metric)
34.01
Usable Length (Decimal)
2.2240
Usable Length (Metric)
56.49
