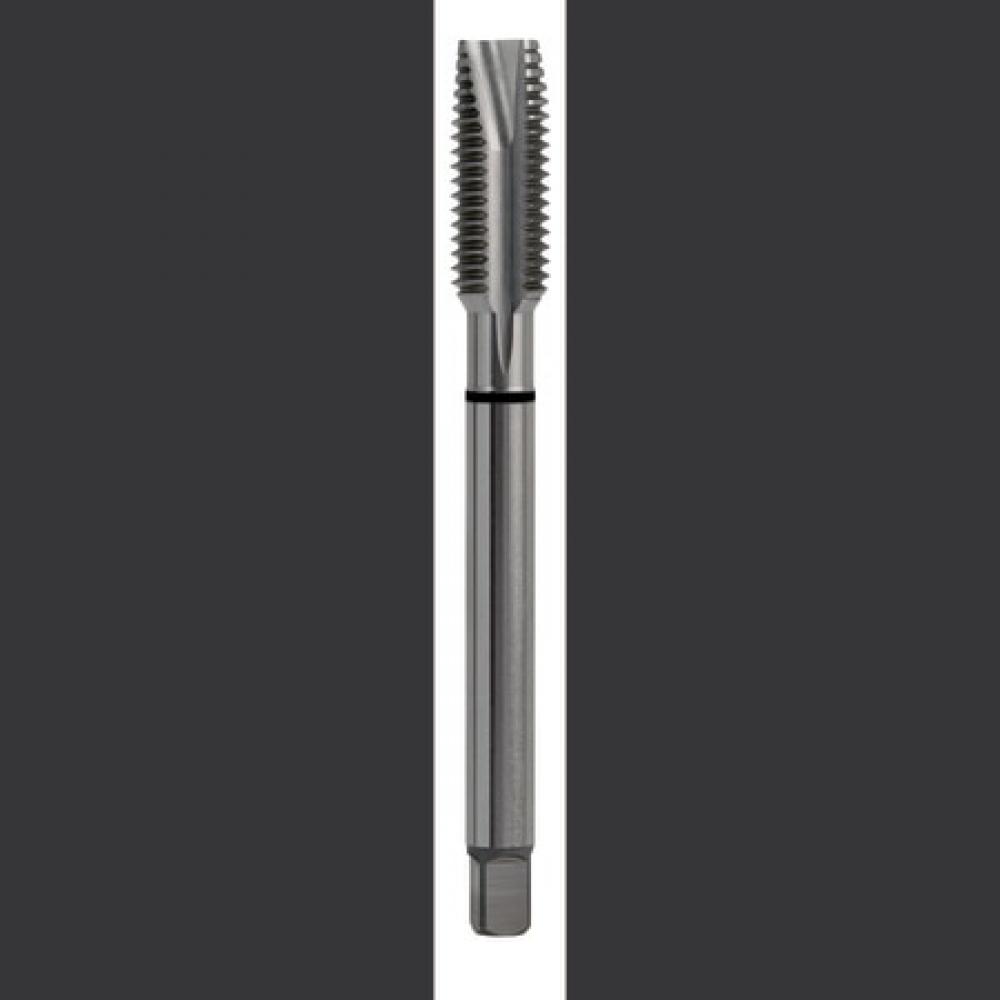

YG-1 Spiral Point Tap: M8 x 1.25, D5, Steam Oxide, HSS, TK365S

YG-1

No reviews yet Write a Review
SKU:
YG1-TK365S
$23.86

YG-1 spiral point tap for steel, stainless steel, cast iron and non-ferrous metals, square shank. HSS, steam oxide finish. Manufacturer part number TK365S.

Specifications

Unit of Measure
Metric
Shank Type
Square
Overall Length (Decimal)
3.5430
Material
HSS
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.3180
Shank Diameter (Metric)
8.08
Overall Length (Metric)
89.99
Thread Standard
M
Thread Size
M8 x 1.25
LxD Ratio
3xD
Thread Limit
D5
Thread Pitch (mm)
1.25
Blank Standard
DIN/ANSI
Chamfer Length
4P-5P
Workpiece Material
Steel, Stainless Steel, Cast Iron, Non-Ferrous
Drill Size (Metric)
6.86
Square Length (Decimal)
0.3800
Square Length (Metric)
9.65
Square Size (Decimal)
0.2380
Square Size (Metric)
6.05
Thread Length (Decimal)
0.6690
Thread Length (Metric)
16.99
Usable Length (Decimal)
1.1260
Usable Length (Metric)
28.60
$23.86
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
