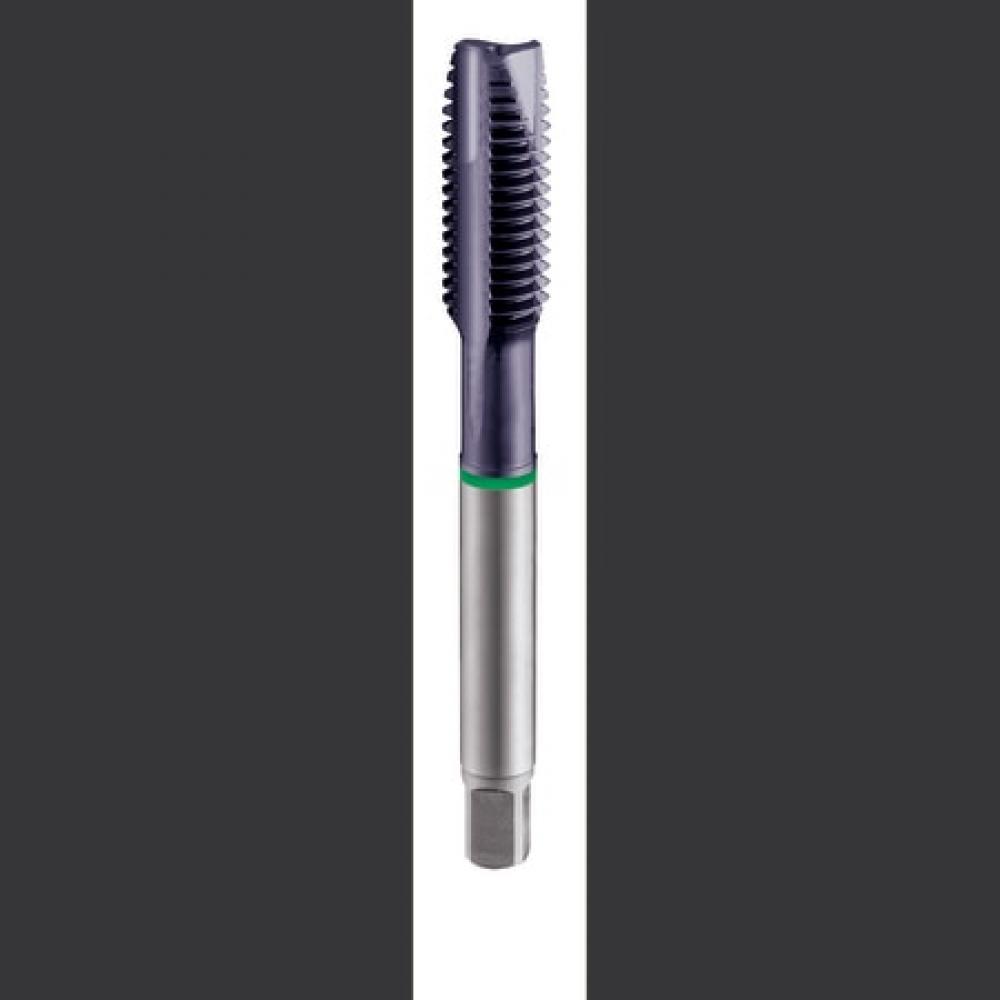

YG-1 Spiral Point Tap: M12 x 1.75, D6, Plug, 3 Flute, TiCN, HSS-PM, TK808506

YG-1

No reviews yet Write a Review
SKU:
YG1-TK808506
$81.58

YG-1 spiral point tap for steel, 3 flutes, plug chamfer, square shank. HSS-PM, TiCN coating. Manufacturer part number TK808506.

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.3740
Material
HSS-PM
Coating/Finish
TiCN
Shank Diameter (Decimal)
0.3670
Shank Diameter (Metric)
9.32
Overall Length (Metric)
85.70
Workpiece Material
Steel
Thread Standard
M
Thread Size
M12 x 1.75
LxD Ratio
3xD
Thread Limit
D6
Chamfer
Plug
Thread Pitch (mm)
1.75
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Hardened Steel
Drill Size (Decimal)
0.4098
Drill Size (Metric)
10.41
Square Length (Decimal)
0.4400
Square Length (Metric)
11.18
Square Size (Decimal)
0.2750
Square Size (Metric)
6.99
Thread Length (Decimal)
0.9840
Thread Length (Metric)
24.99
Usable Length (Decimal)
1.6570
Usable Length (Metric)
42.09
