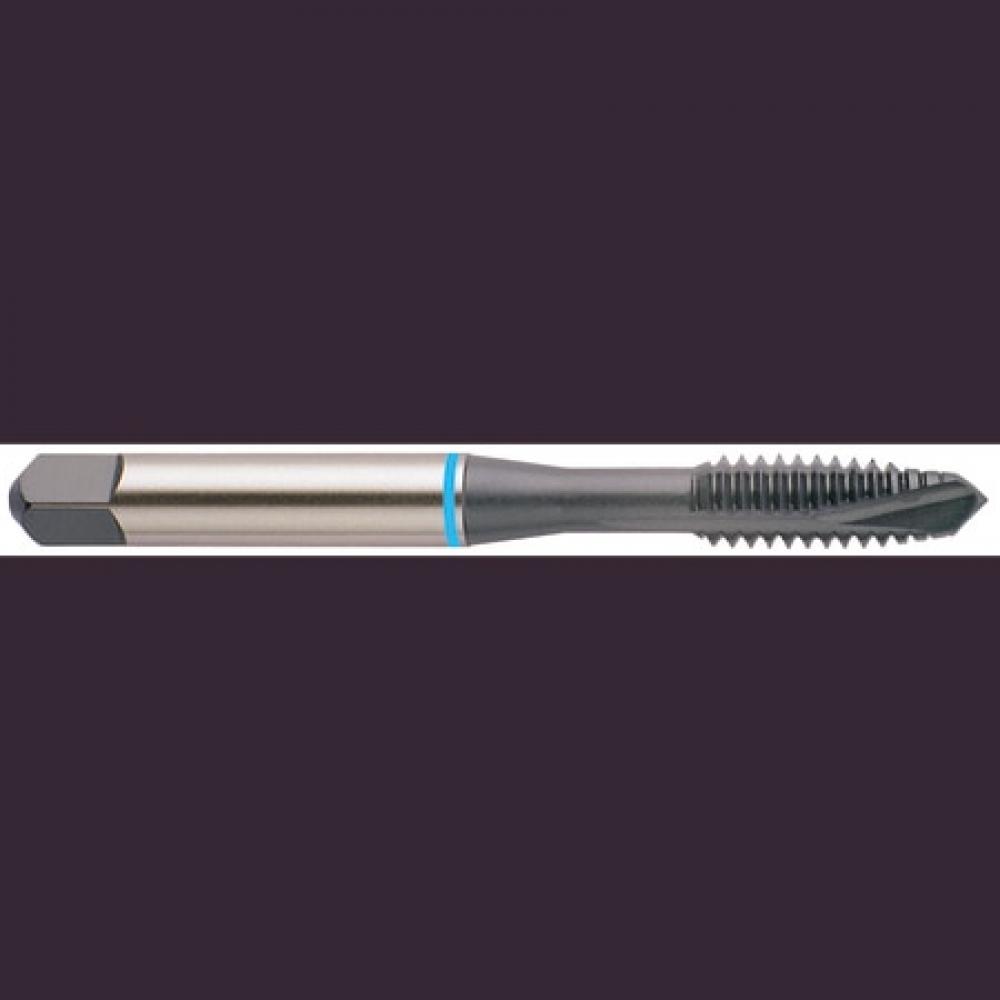

YG-1 Spiral Point Tap: M16 x 2, D7, Plug, 3 Flute, Steam Oxide, HSS-PM, TQ808607

YG-1

No reviews yet Write a Review
SKU:
YG1-TQ808607
$100.89

YG-1 spiral point tap for steel, 3 flutes, plug chamfer, square shank. HSS-PM, steam oxide finish. Manufacturer part number TQ808607.

Specifications

Unit of Measure
Metric
Secondary Workpiece Material
Hardened Steel
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
3.8110
Material
HSS-PM
Coating/Finish
Steam Oxide
Shank Diameter (Decimal)
0.4800
Shank Diameter (Metric)
12.19
Overall Length (Metric)
96.80
Workpiece Material
Steel
Thread Standard
M
Thread Size
M16 x 2
LxD Ratio
3xD
Thread Limit
D7
Chamfer
Plug
Thread Pitch (mm)
2
Blank Standard
302A
Chamfer Length
4P-5P
Drill Size (Decimal)
0.5583
Drill Size (Metric)
14.18
Square Length (Decimal)
0.5600
Square Length (Metric)
14.22
Square Size (Decimal)
0.3600
Square Size (Metric)
9.14
Thread Length (Decimal)
1.0830
Thread Length (Metric)
27.51
Usable Length (Decimal)
1.8110
Usable Length (Metric)
46.00
