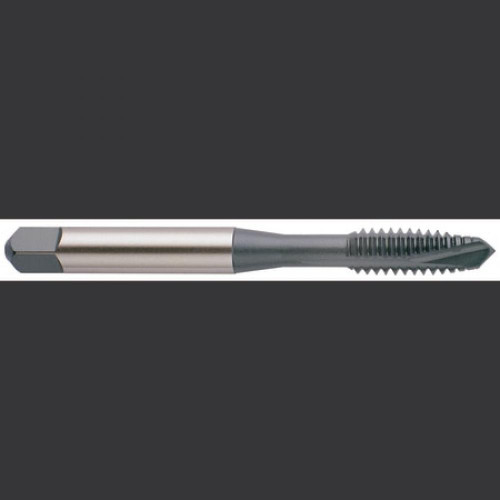

YG-1 Spiral Point Tap: M18 x 2.5, D7, Plug, 3 Flute, TiCN, HSS-PM, TK808657

YG-1

No reviews yet Write a Review
SKU:
YG1-TK808657
$199.48

YG-1 spiral point tap for steel, 3 flutes, plug chamfer, square shank. HSS-PM, TiCN coating. Manufacturer part number TK808657.

Specifications

Unit of Measure
Metric
Number of Flutes
3
Shank Type
Square
Overall Length (Decimal)
4.0310
Material
HSS-PM
Coating/Finish
TiCN
Shank Diameter (Decimal)
0.5420
Shank Diameter (Metric)
13.77
Overall Length (Metric)
102.39
Workpiece Material
Steel
Thread Standard
M
Thread Size
M18 x 2.5
LxD Ratio
3xD
Thread Limit
D7
Chamfer
Plug
Thread Pitch (mm)
2.50
Blank Standard
302A
Chamfer Length
4P-5P
Secondary Workpiece Material
Hardened Steel
Square Length (Decimal)
0.6300
Square Length (Metric)
16.00
Square Size (Decimal)
0.4060
Square Size (Metric)
10.31
Thread Length (Decimal)
1.0830
Thread Length (Metric)
27.51
Usable Length (Decimal)
1.8110
Usable Length (Metric)
46.00
YG-1 Spiral Point Tap: M18 x 2.5, D7, Plug, 3 Flute, TiCN, HSS-PM, TK808657
$199.48
