HT - 16620

Name: HT - 16620
Brand: Harvey Tool
SKU: HAR-16620
Price: 158.4 USD
Availability: InStock

Harvey Tool

No reviews yet Write a Review

$158.40

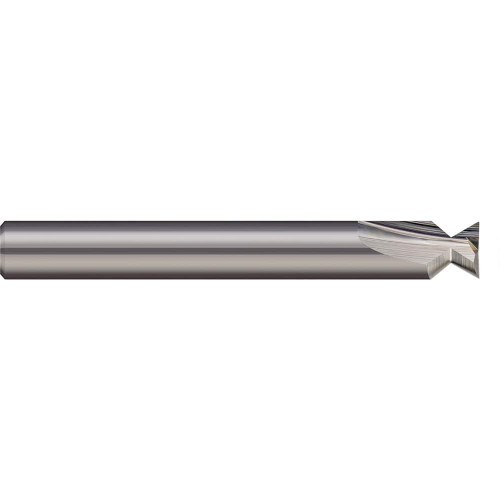

0.3125" (5/16) Cutter DIA x 0.0100" Radius x 48° included Carbide Dovetail Cutter, 3 Flutes

Unit of Measure

Fractional

Diameter

5/16 Inch

Shank Size

5/16 Inch

Overall Length

2-1/2 Inch

Coating/Finish

Length of Cut (Decimal)

0.19

Length of Cut (Fractional)

3/16

Overall Length (Decimal)

2.50

Neck Diameter (Decimal)

0.16

Neck Diameter (Metric)

Corner Radius (Decimal)

0.01

Number of Flutes

Diameter (Decimal)

0.32

Included Angle

48 degrees

Shank Size (Decimal)

0.32

Angle per Side

24 degrees
