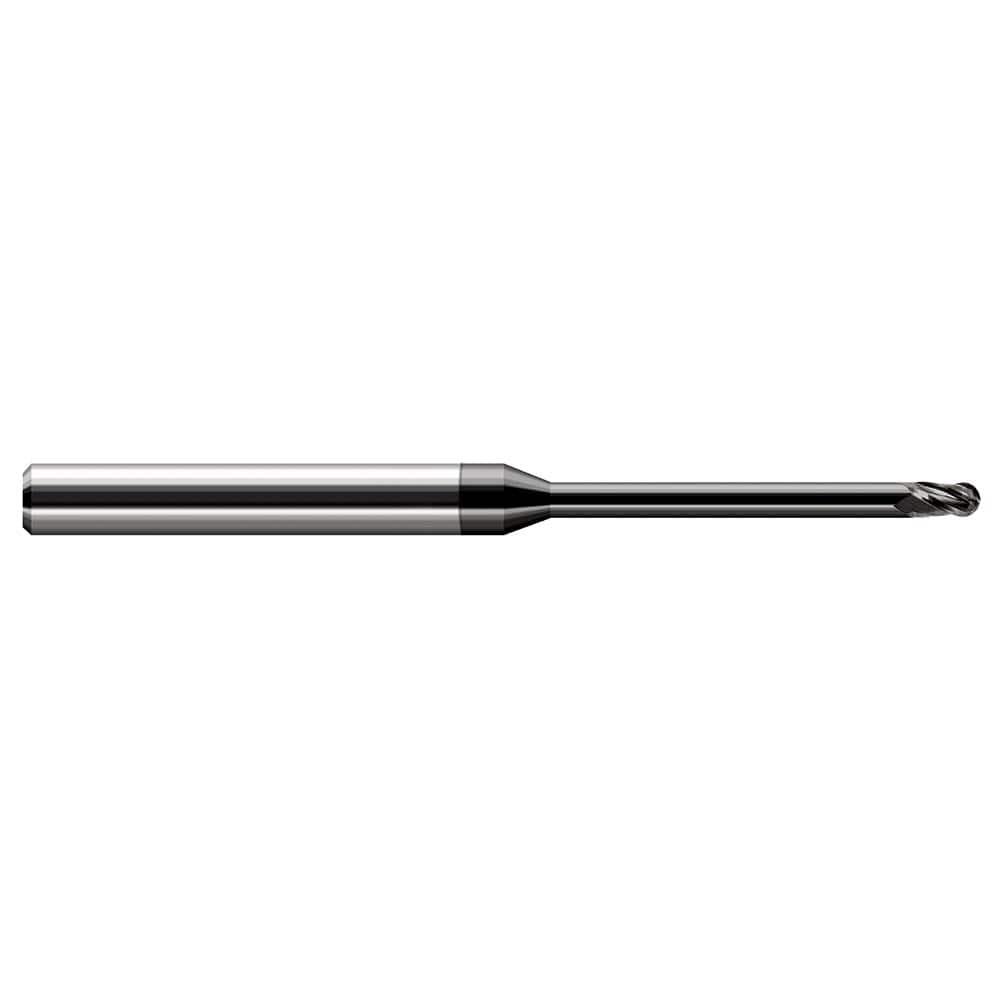

Harvey Tool Ball End Mill: 1/16" Dia, 3/32" LOC, 4" OAL, 1" Reach, 2 Flute, Amorphous Diamond, 17762-C4

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-17762-C4
$131.80

Harvey Tool ball end mill, 2 flutes, center cutting. Solid carbide, Amorphous Diamond coating. Manufacturer part number 17762-C4.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.0620
Length of Cut (Decimal)
0.0930
Shank Diameter (Decimal)
0.2500
Overall Length (Decimal)
4.0000
Coating/Finish
Amorphous Diamond
Length of Cut (Fractional)
3/32
Neck Diameter (Decimal)
0.0990
Number of Flutes
2
Neck Length (Decimal)
0.0620
Neck Length (Fractional)
1/16
Shank Diameter (Fractional)
1/4
Overall Length (Fractional)
4
Size System
Fractional
Cutting Diameter (Fractional)
1/16
Center Cutting
Yes
Minor Diameter (Decimal)
0.0570
Neck Angle
2
Tapered Reach (Decimal)
0.7500
Tapered Reach (Fractional)
3/4
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0010
End Type
Ball
LxD Ratio
1.5xD
Material
Solid Carbide
Reach (Decimal)
1.0000
Reach (Fractional)
1
Shank Tolerance
h6
Harvey Tool Ball End Mill: 1/16" Dia, 3/32" LOC, 4" OAL, 1" Reach, 2 Flute, Amorphous Diamond, 17762-C4
$131.80
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
