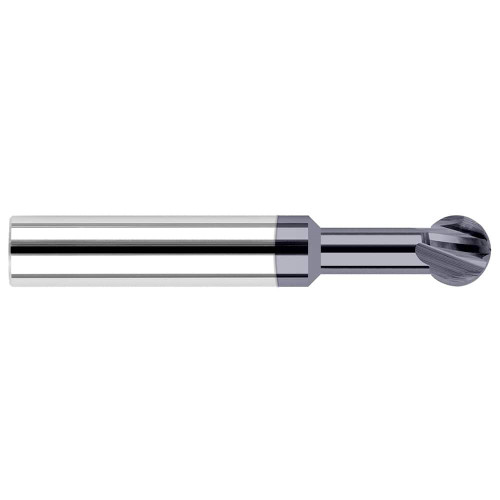

Harvey Tool Cutter: 9/32" Dia, .240" LOC, 2-1/2" OAL, .989" Reach, 4 Flute, AlTiN, 23218-C3

Harvey Tool

No reviews yet Write a Review
SKU:
HAR-23218-C3
$135.90

Harvey Tool cutter, 4 flutes, spherical end, center cutting. Solid carbide, AlTiN coating. Manufacturer part number 23218-C3.

Specifications

Unit of Measure
Inch
Cutting Diameter (Decimal)
0.2813
Length of Cut (Decimal)
0.2400
Shank Diameter (Decimal)
0.3125
Overall Length (Decimal)
2.5000
Coating/Finish
AlTiN
Overall Length (Fractional)
2-1/2
Neck Diameter (Decimal)
0.1800
Number of Flutes
4
Neck Length (Decimal)
0.7500
Neck Length (Fractional)
3/4
Shank Diameter (Fractional)
5/16
Neck Angle
0
Cutting Diameter (Fractional)
9/32
Radius (Decimal)
0.1406
Radius (Fractional)
9/64
Wrap Angle
270
Center Cutting
Yes
Cutting Diameter Tolerance (Decimal)
+0.0000/-0.0020
End Type
Spherical
Material
Solid Carbide
Reach (Decimal)
0.9890
Harvey Tool Cutter: 9/32" Dia, .240" LOC, 2-1/2" OAL, .989" Reach, 4 Flute, AlTiN, 23218-C3
$135.90
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
